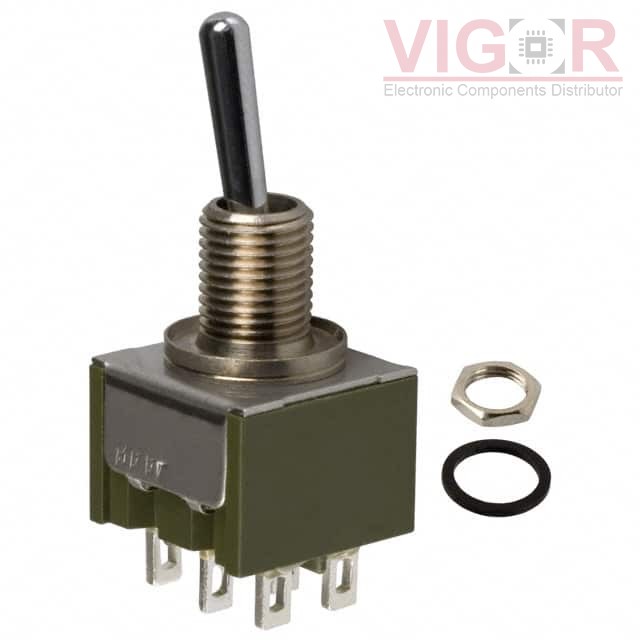

M2022SD3W01

Part No :: M2022SD3W01

Manufacturer: NKK Switches

VIGOR # :: 2722588

Description: SWITCH TOGGLE DPDT 6A 125V

Catalog: Toggle Switches

DataSheet: M2022SD3W01 PDF

Country of origin: -

Date code: -

M2022SD3W01 Specifications

Type	Description
Series:	M
Package:	Bulk
Part Status:	Active
Mounting Type:	Panel Mount
Circuit:	DPDT
Switch Function:	On-On
Current Rating (Amps):	6A (AC), 4A (DC)
Voltage Rating - AC:	125 V
Voltage Rating - DC:	30 V
Actuator Type:	Standard Round
Actuator Length:	10.50mm
Illumination:	Non-Illuminated
Illumination Type, Color:	-
Illumination Voltage (Nominal):	-
Termination Style:	Solder Lug
Panel Cutout Dimensions:	Circular - 6.50mm Dia
Bushing Thread:	1/4-40
Ingress Protection:	IP67 - Dust Tight, Waterproof
Features:	Epoxy Sealed Terminals
Operating Temperature:	-30°C ~ 85°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 575168

Shipped from

HK warehouse

Expected Shipping Date

Apr 04 - Apr 08 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$6.2800~~	~~$6.28~~
10	~~$5.9831~~	~~$59.83~~
25	~~$5.8338~~	~~$145.84~~
50	~~$5.6840~~	~~$284.20~~
100	~~$5.5344~~	~~$553.44~~
250	~~$5.0857~~	~~$1 271.42~~
500	~~$4.4873~~	~~$2 243.67~~
1000	~~$4.0386~~	~~$4 038.62~~

Current price of M2022SD3W01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
