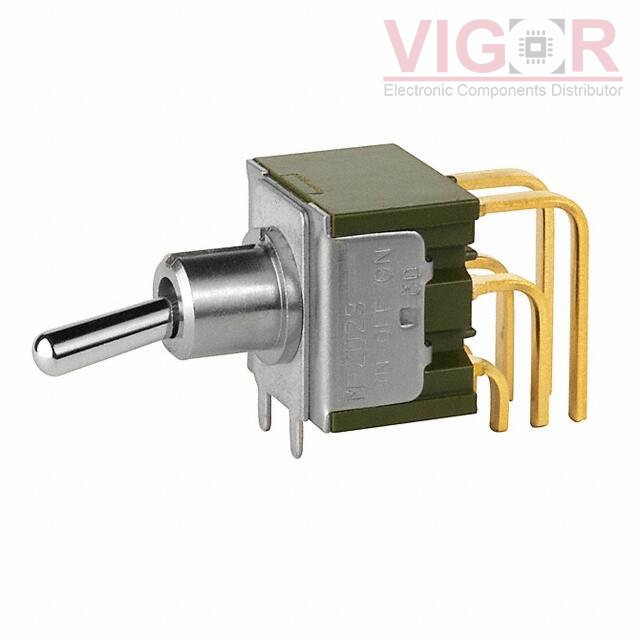

M2023S3A2G45

Part No :: M2023S3A2G45

Manufacturer: NKK Switches

VIGOR # :: 2722629

Description: SWITCH TOGGLE DPDT 0.4VA 28V

Catalog: Toggle Switches

DataSheet: M2023S3A2G45 PDF

Country of origin: -

Date code: -

M2023S3A2G45 Specifications

Type	Description
Series:	M
Package:	Tray
Part Status:	Active
Mounting Type:	Through Hole, Right Angle, Vertical
Circuit:	DPDT
Switch Function:	On-Off-On
Current Rating (Amps):	0.4VA (AC/DC)
Voltage Rating - AC:	28 V
Voltage Rating - DC:	28 V
Actuator Type:	Standard Round
Actuator Length:	8.28mm
Illumination:	Non-Illuminated
Illumination Type, Color:	-
Illumination Voltage (Nominal):	-
Termination Style:	PC Pin
Panel Cutout Dimensions:	-
Bushing Thread:	Unthreaded
Ingress Protection:	-
Features:	Epoxy Sealed Terminals
Operating Temperature:	-30°C ~ 85°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Dec 29 - Jan 02 2025

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$5.58~~	~~$5.58~~
1000	~~$5.17~~	~~$5 165.65~~

Current price of M2023S3A2G45 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

100AWSP3T1B4M2RE

SWITCH TOGGLE SPDT 0.4VA 20V

12NT1-3

SWITCH TOGGLE DPDT 15A 125V

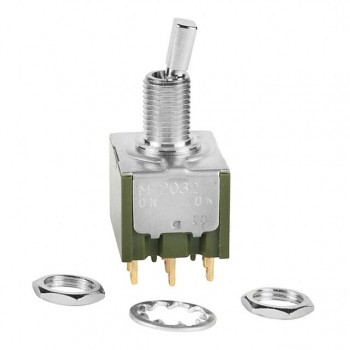

M2032E2D1G01
