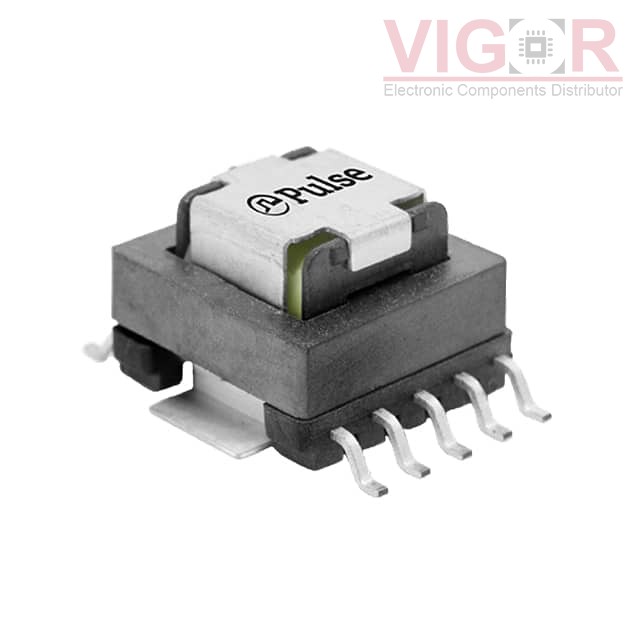

PB0025NL

Part No :: PB0025NL

Manufacturer: PulseLarsen Antenna

Description: CURR SENSE XFMR 50:1 35A SMD

Catalog: Current Sense Transformers

DataSheet: PB0025NL PDF

Availability: 1991 pieces

Current price of PB0025NL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PB0025NL Specifications

Type	Description
Series:	PB002XNL
Package:	Tray
Part Status:	Active
Frequency Range:	50kHz ~ 500kHz
Type:	Invasive
Current Rating (Amps):	-
Inductance:	50:1
ET (Volt-Time):	-
Turns Ratio - Primary:Secondary:	0.42mOhm Primary, 700mOhm Secondary
Current Ratio:	-
DC Resistance (DCR):	Surface Mount
Ratings:	0.591" L x 0.784" W (15.00mm x 19.91mm)
Mounting Type:	0.394" (10.00mm)
Size / Dimension:	Gull Wing
