54050C

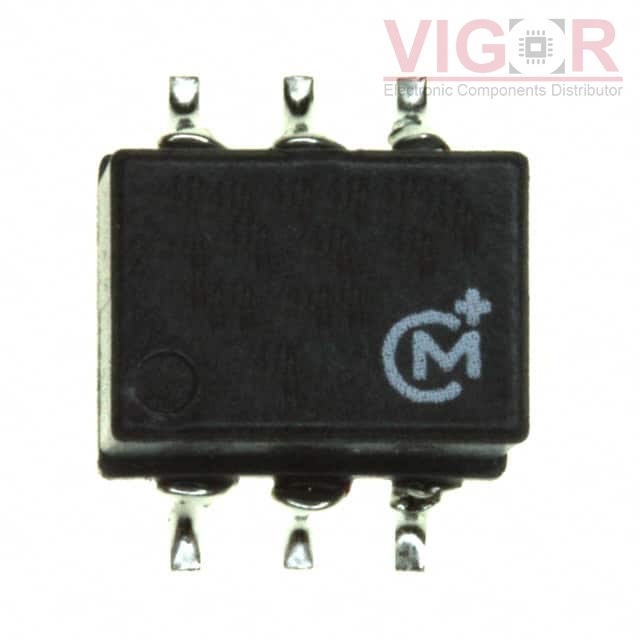

Image is for reference,
please contact us to get the real picture

Part No :: 54050C

Manufacturer: Murata Power Solutions

Description: CURR SENSE XFMR 1:1:50 15A SMD

Catalog: Current Sense Transformers

DataSheet: 54050C PDF

Availability: 0 pieces

Unit Price: ~~$1.22000~~

Current price of 54050C is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

54050C Specifications

Type	Description
Series:	5400
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Frequency Range:	50kHz ~ 500kHz
Type:	Invasive
Current Rating (Amps):	7mOhm Primary, 500mOhm Secondary
Inductance:	-
ET (Volt-Time):	Surface Mount
Turns Ratio - Primary:Secondary:	0.354" L x 0.425" W (9.00mm x 10.80mm)
Current Ratio:	0.323" (8.20mm)
DC Resistance (DCR):	Gull Wing

Please confirm the specifications of the products when ordering.
