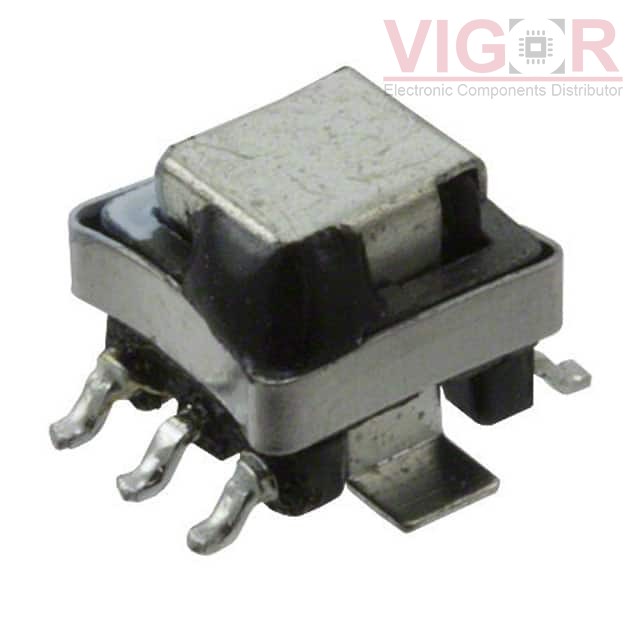

749251020

Part No :: 749251020

Manufacturer: Würth Elektronik Midcom

Description: CURR SENSE XFMR 1:20 10A SMD

Catalog: Current Sense Transformers

DataSheet: 749251020 PDF

Availability: 647 pieces

Unit Price: ~~$5.01000~~

Current price of 749251020 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

749251020 Specifications

Type	Description
Series:	WE-CST
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Frequency Range:	-
Type:	Invasive
Current Rating (Amps):	1:20
Inductance:	-
ET (Volt-Time):	6mOhm Primary, 200mOhm Secondary
Turns Ratio - Primary:Secondary:	-
Current Ratio:	Surface Mount
DC Resistance (DCR):	0.303" L x 0.272" W (7.70mm x 6.90mm)
Ratings:	0.210" (5.33mm)
Mounting Type:	Gull Wing

Please confirm the specifications of the products when ordering.
