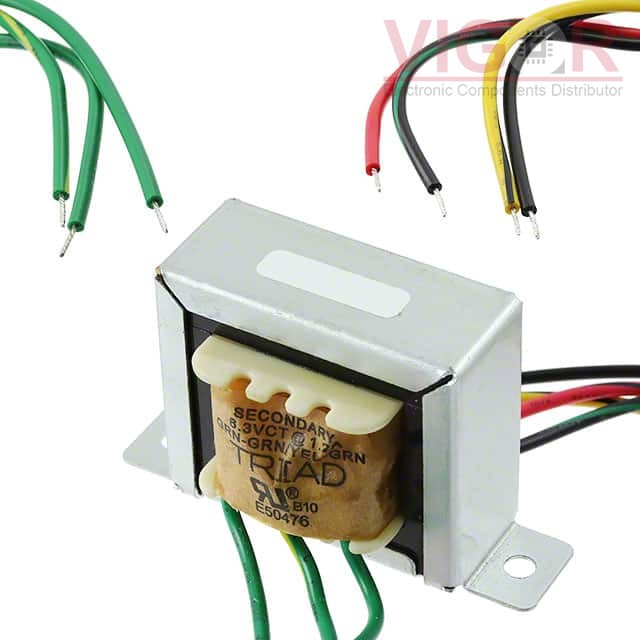

F-314X

Part No :: F-314X

Manufacturer: Triad Magnetics

VIGOR # :: 1984595

Description: PWR XFMR LAMINATED 7.56VA CHAS

Catalog: Power Transformers

DataSheet: F-314X PDF

Country of origin: -

Date code: -

F-314X Specifications

Type	Description
Series:	Single Secondary
Package:	Box
Part Status:	Active
Type:	Laminated Core
Voltage - Primary:	115V, 230V
Voltage - Secondary (Full Load):	6.3V
Current - Output (Max):	1.2A
Primary Winding(s):	Dual
Secondary Winding(s):	Single
Center Tap:	Yes
Power - Max:	7.56VA
Mounting Type:	Chassis Mount
Termination Style:	PC Pin
Size / Dimension:	71.45mm L x 41.28mm W
Height - Seated (Max):	41.28mm
Voltage - Isolation:	2500Vrms
Weight:	0.7 lb (317.51 g)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 100

Shipped from

HK warehouse

Expected Shipping Date

Jul 03 - Jul 07 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$9.0020~~	~~$9.00~~
10	~~$6.6495~~	~~$66.49~~
25	~~$6.1377~~	~~$153.44~~
50	~~$5.9331~~	~~$296.66~~
100	~~$5.7694~~	~~$576.94~~
250	~~$5.6876~~	~~$1 421.89~~
500	~~$5.6262~~	~~$2 813.10~~
1000	~~$5.5239~~	~~$5 523.90~~

Current price of F-314X is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
