VPL20-250

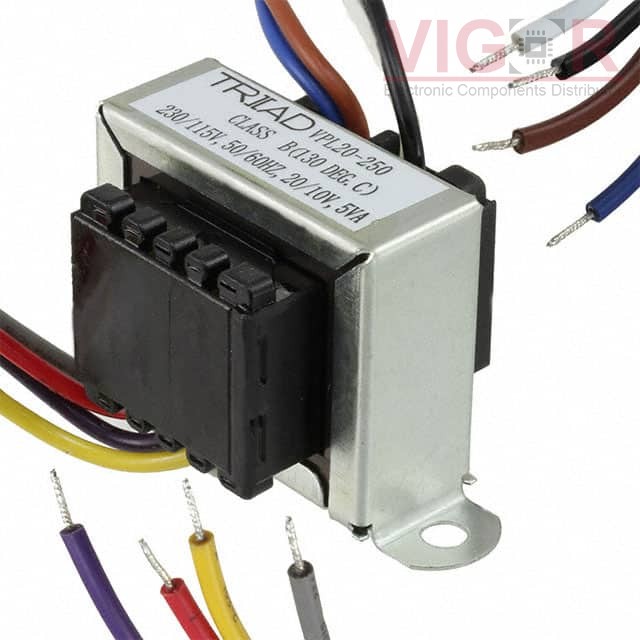

Image is for reference,
please contact us to get the real picture

Part No :: VPL20-250

Manufacturer: Triad Magnetics

Description: PWR XFMR LAMINATED 5.0VA CHAS MT

Catalog: Power Transformers

DataSheet: VPL20-250 PDF

Availability: 17146 pieces

Unit Price: ~~$11.23000~~

Current price of VPL20-250 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

VPL20-250 Specifications

Type	Description
Series:	Chassis Mount: World Series™
Package:	Box
Part Status:	Active
Type:	Laminated Core
Voltage - Primary:	115V, 230V
Voltage - Secondary (Full Load):	20V
Current - Output (Max):	250mA
Primary Winding(s):	Dual
Secondary Winding(s):	Dual
Center Tap:	No
Power - Max:	5.0VA
Mounting Type:	Chassis Mount
Termination Style:	Wire Leads
Size / Dimension:	36.52mm L x 60.33mm W
Height - Seated (Max):	36.52mm
Voltage - Isolation:	3500Vrms
Weight:	0.4 lb (181.44 g)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 17146

Shipped from

HK warehouse

Expected Shipping Date

Nov 18 - Nov 22 2025

Enter Quantity

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	$11.23000	$11.23
10	$8.59812	$85.9812
25	$7.28456	$182.114
50	$7.16523	$358.2615
100	$6.80686	$680.686
250	$6.73523	$1683.8075
500	$6.63969	$3319.845
1000	$6.56805	$6568.05
