F-236Z

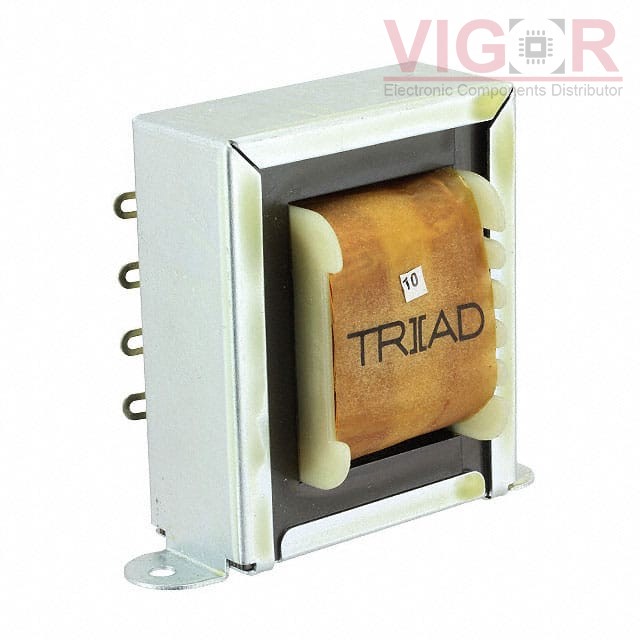

Image is for reference,
please contact us to get the real picture

Part No :: F-236Z

Manufacturer: Triad Magnetics

Description: PWR XFMR LAMINATED 12VA CHAS MT

Catalog: Power Transformers

DataSheet: F-236Z PDF

Availability: 2 pieces

Unit Price: ~~$14.08000~~

Current price of F-236Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

F-236Z Specifications

Type	Description
Series:	Multiple Secondary
Package:	Box
Part Status:	Active
Type:	Laminated Core
Voltage - Primary:	115V
Voltage - Secondary (Full Load):	Parallel 12V, Series 24V
Current - Output (Max):	Parallel 500mA, Series 250mA
Primary Winding(s):	Single
Secondary Winding(s):	Dual
Center Tap:	Yes
Power - Max:	12VA
Mounting Type:	Chassis Mount
Termination Style:	Solder, Quick Connect
Size / Dimension:	73.03mm L x 41.28mm W
Height - Seated (Max):	58.72mm
Voltage - Isolation:	1500Vrms
Weight:	0.9 lb (408.23 g)
