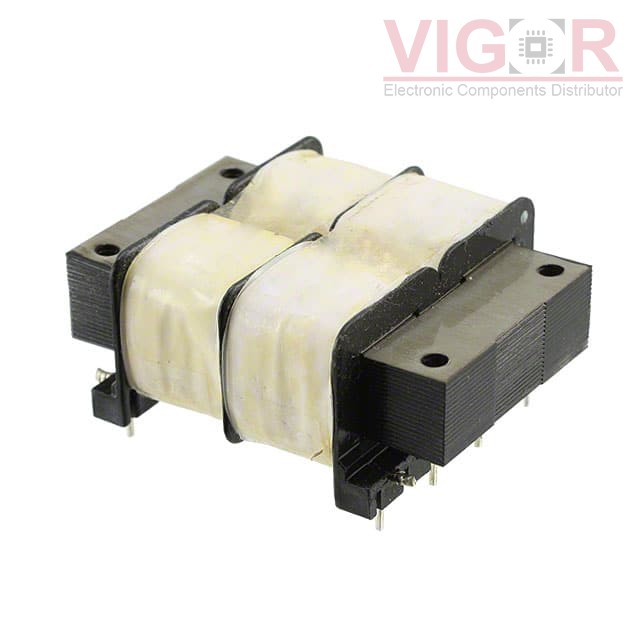

PF24-34

Part No :: PF24-34

Manufacturer: Tamura

VIGOR # :: 4507436

Description: PWR XFMR SEMI-TORO 24VA TH

Catalog: Power Transformers

DataSheet: PF24-34 PDF

Country of origin: -

Date code: -

PF24-34 Specifications

Type	Description
Series:	PF24
Package:	Tube
Part Status:	Obsolete
Type:	Semi-Toroidal
Voltage - Primary:	115V, 230V
Voltage - Secondary (Full Load):	Parallel 17V, Series 34V
Current - Output (Max):	Parallel 850mA, Series 430mA
Primary Winding(s):	Dual
Secondary Winding(s):	Dual
Center Tap:	No
Power - Max:	24VA
Mounting Type:	Through Hole
Termination Style:	PC Pin
Size / Dimension:	72.00mm L x 58.00mm W
Height - Seated (Max):	31.80mm
Voltage - Isolation:	1500Vrms
Weight:	-
