749196500

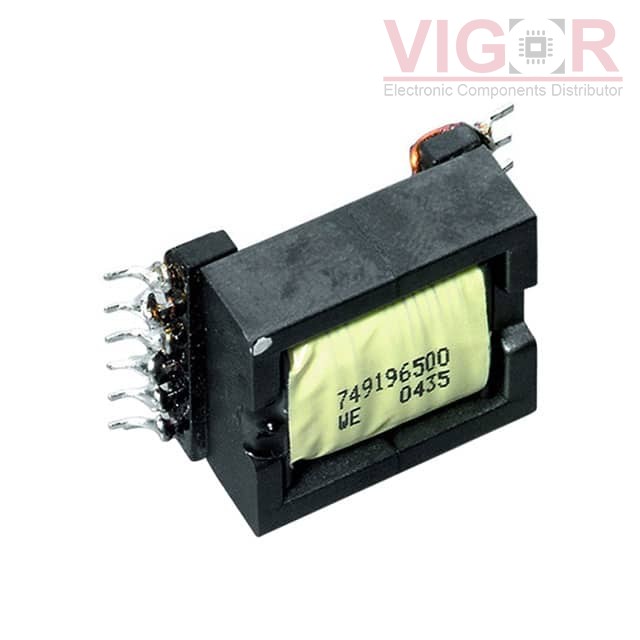

Image is for reference,
please contact us to get the real picture

Part No :: 749196500

Manufacturer: Würth Elektronik Midcom

Description: WE-FLEX FLEXIBLE TRANSFORMER FOR

Catalog: Switching Converter, SMPS Transformers

DataSheet: 749196500 PDF

Availability: 240 pieces

Unit Price: ~~$5.99200~~

Current price of 749196500 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

749196500 Specifications

Type	Description
Series:	WE-FLEX
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Configurable (For DC/DC)
Applications:	Flexible
Intended Chipset:	-
Chipset Manufacturer:	-
Voltage - Primary:	-
Voltage - Auxiliary:	-
Voltage - Isolation:	500VAC
Inductance @ Frequency:	87.1µH @ 10kHz
Frequency:	-
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Size / Dimension:	0.827" L x 0.827" W (21.00mm x 21.00mm)
Height - Seated (Max):	0.425" (10.80mm)
Footprint:	1.169" L x 0.827" W (29.70mm x 21.00mm)
Style:	-
