7508170313

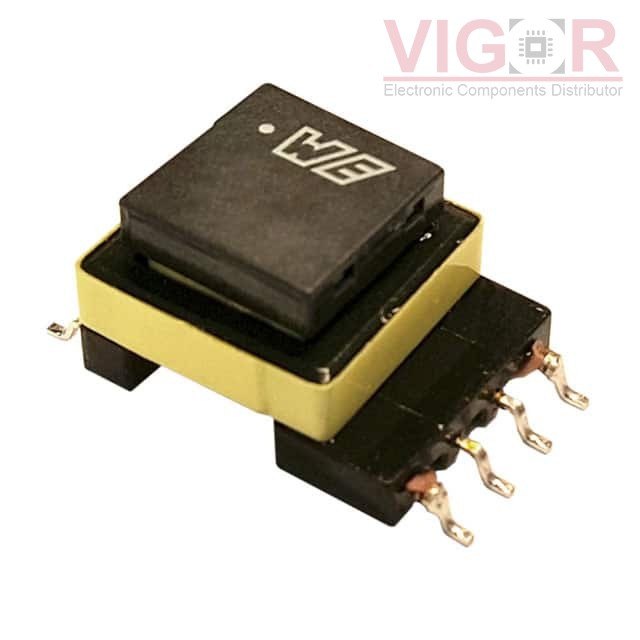

Image is for reference,
please contact us to get the real picture

Part No :: 7508170313

Manufacturer: Würth Elektronik Midcom

Description: XFRMER FLYBACK AC/DC CONV SMD

Catalog: Switching Converter, SMPS Transformers

DataSheet: 7508170313 PDF

Availability: 0 pieces

Unit Price: ~~$3.56800~~

Current price of 7508170313 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

7508170313 Specifications

Type	Description
Series:	WE-UNIT, MID-OLEE
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	For AC/DC Converters
Applications:	Flyback Converters
Intended Chipset:	-
Chipset Manufacturer:	-
Voltage - Primary:	78 ~ 375V
Voltage - Auxiliary:	16V @ 50mA
Voltage - Isolation:	3000Vrms
Inductance @ Frequency:	592µH @ 10kHz
Frequency:	150kHz
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Size / Dimension:	-
Height - Seated (Max):	0.438" (11.13mm)
Footprint:	0.543" L x 0.941" W (13.80mm x 23.90mm)
Style:	-
