ECO2023SEO-D01H016

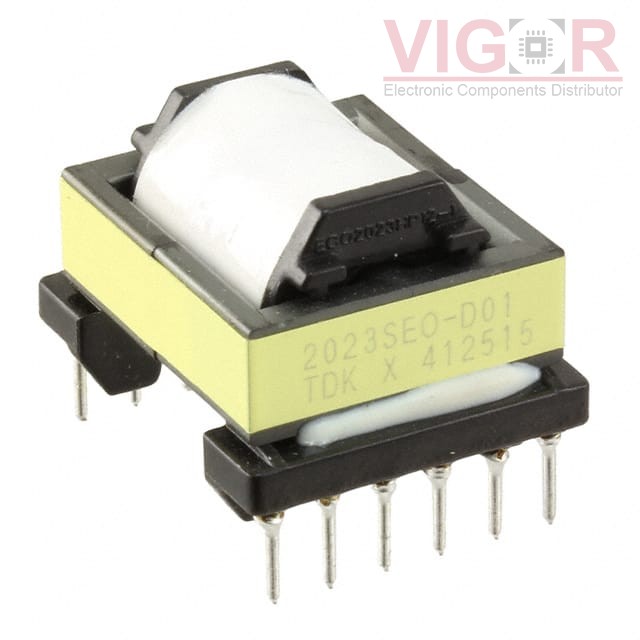

Image is for reference,
please contact us to get the real picture

Part No :: ECO2023SEO-D01H016

Manufacturer: TDK Corporation

Description: INDUCTOR/XFRMR

Catalog: Switching Converter, SMPS Transformers

DataSheet: ECO2023SEO-D01H016 PDF

Availability: 0 pieces

Unit Price: ~~$4.44800~~

Current price of ECO2023SEO-D01H016 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ECO2023SEO-D01H016 Specifications

Type	Description
Series:	ECO
Package:	Bulk
Part Status:	Active
Type:	For AC/DC Converters
Applications:	Flyback Converters
Intended Chipset:	-
Chipset Manufacturer:	-
Voltage - Primary:	85 ~ 276V
Voltage - Auxiliary:	12V @ 1.3A
Voltage - Isolation:	3000Vrms
Inductance @ Frequency:	489µH @ 10kHz
Frequency:	100kHz
Operating Temperature:	-30°C ~ 120°C
Mounting Type:	Through Hole
Size / Dimension:	0.925" L x 1.161" W (23.50mm x 29.50mm)
Height - Seated (Max):	0.787" (20.00mm)
Footprint:	0.925" L x 1.161" W (23.50mm x 29.50mm)
Style:	-
