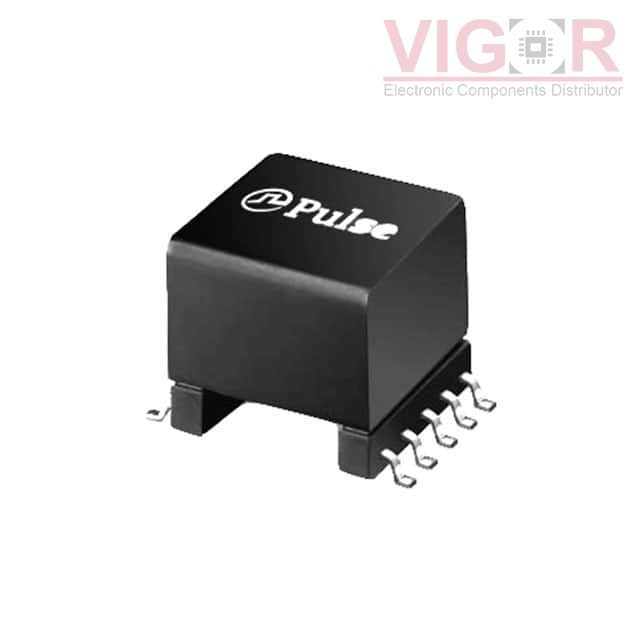

PA3856.004NLT

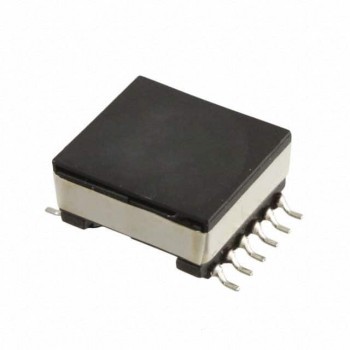

Image is for reference,
please contact us to get the real picture

Part No :: PA3856.004NLT

Manufacturer: PulseLarsen Antenna

Description: TRANSFORMER FORWARD 128UH SMD

Catalog: Switching Converter, SMPS Transformers

DataSheet: PA3856.004NLT PDF

Availability: 0 pieces

Unit Price: ~~$3.68000~~

Current price of PA3856.004NLT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PA3856.004NLT Specifications

Type	Description
Series:	EP13Plus
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	For DC/DC Converters
Applications:	Forward, Push-Pull Converters
Intended Chipset:	-
Chipset Manufacturer:	-
Voltage - Primary:	9 ~ 57V
Voltage - Auxiliary:	10V @ 50mA
Voltage - Isolation:	2250VDC
Inductance @ Frequency:	-
Frequency:	200kHz
Operating Temperature:	-40°C ~ 130°C
Mounting Type:	Surface Mount
Size / Dimension:	0.571" L x 0.526" W (14.50mm x 13.36mm)
Height - Seated (Max):	0.551" (14.00mm)
Footprint:	0.571" L x 0.695" W (14.50mm x 17.65mm)
Style:	-
