7508151501

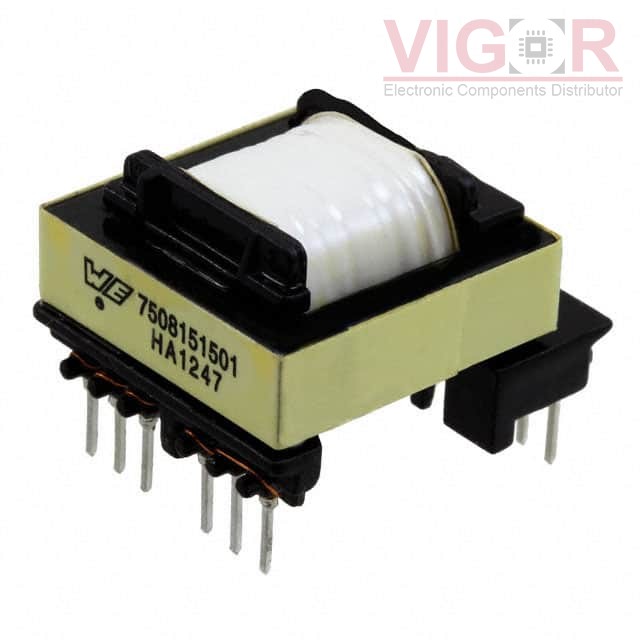

Image is for reference,
please contact us to get the real picture

Part No :: 7508151501

Manufacturer: Würth Elektronik Midcom

Description: XFRMER FLYBACK DC/DC CONV TH

Catalog: Switching Converter, SMPS Transformers

DataSheet: 7508151501 PDF

Availability: 10 pieces

Unit Price: ~~$4.61000~~

Current price of 7508151501 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

7508151501 Specifications

Type	Description
Series:	WE-UNIT, MID-OLTI
Package:	Tray
Part Status:	Active
Type:	For DC/DC Converters
Applications:	Flyback Converters
Intended Chipset:	UCC287xx, UCC289xx
Chipset Manufacturer:	Texas Instruments
Voltage - Primary:	255 ~ 275V
Voltage - Auxiliary:	14V @ 20mA
Voltage - Isolation:	4500Vrms
Inductance @ Frequency:	1.78mH @ 70kHz
Frequency:	70kHz
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Through Hole
Size / Dimension:	-
Height - Seated (Max):	0.438" (11.13mm)
Footprint:	0.543" L x 0.941" W (13.80mm x 23.90mm)
Style:	-
