B78307A2385A003

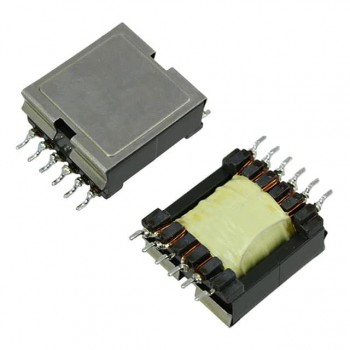

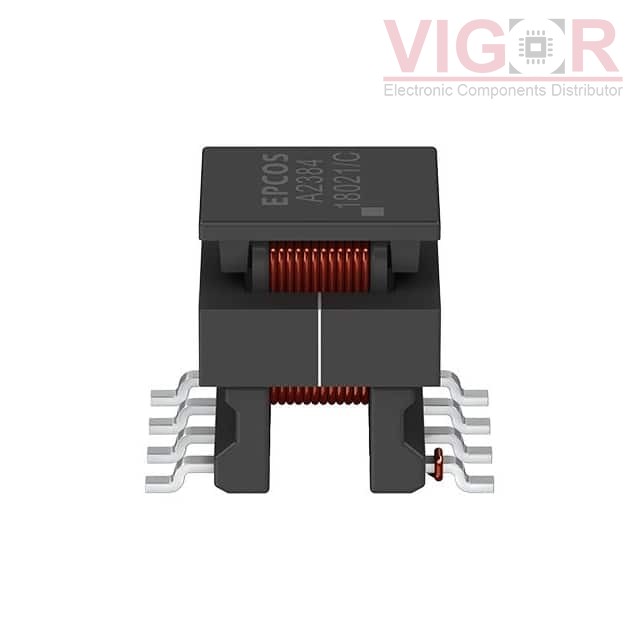

Image is for reference,
please contact us to get the real picture

Part No :: B78307A2385A003

Manufacturer: TDK EPCOS

Description: AUXILIRY TRANSFORMER E10 SMD

Catalog: Switching Converter, SMPS Transformers

DataSheet: B78307A2385A003 PDF

Availability: 279 pieces

Unit Price: ~~$6.68000~~

Current price of B78307A2385A003 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B78307A2385A003 Specifications

Type	Description
Series:	Automotive, AEC-Q200, ATEM E10
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	For DC/DC Converters
Applications:	Flyback Converters
Intended Chipset:	-
Chipset Manufacturer:	-
Voltage - Primary:	-
Voltage - Auxiliary:	-
Voltage - Isolation:	-
Inductance @ Frequency:	10µH @ 100kHz
Frequency:	100 ~ 500kHz
Operating Temperature:	-40°C ~ 150°C
Mounting Type:	Surface Mount
Size / Dimension:	0.461" L x 0.367" W (11.70mm x 9.33mm)
Height - Seated (Max):	0.447" (11.35mm)
Footprint:	0.518" L x 0.461" W (13.15mm x 11.70mm)
Style:	-
