750311475

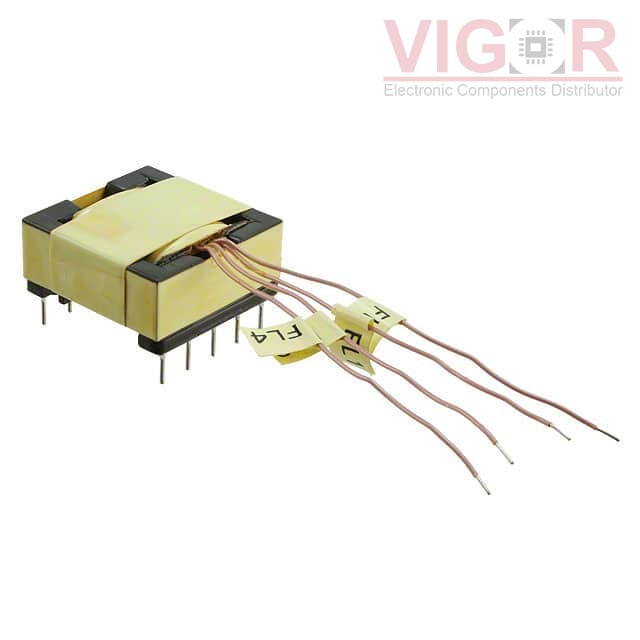

Image is for reference,
please contact us to get the real picture

Part No :: 750311475

Manufacturer: Würth Elektronik Midcom

Description: TRANS FLYBACK NCL30000 1.72MH

Catalog: Switching Converter, SMPS Transformers

DataSheet: 750311475 PDF

Availability: 49 pieces

Unit Price: ~~$11.54000~~

Current price of 750311475 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

750311475 Specifications

Type	Description
Series:	WE-UNIT, MID-OLON
Package:	Tray
Part Status:	Active
Type:	For AC/DC Converters
Applications:	LED Drivers, AC/DC SMPS
Intended Chipset:	NCL30000
Chipset Manufacturer:	On Semiconductor
Voltage - Primary:	127 ~ 431V
Voltage - Auxiliary:	-
Voltage - Isolation:	4500Vrms
Inductance @ Frequency:	1.72mH @ 10kHz
Frequency:	39kHz
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Through Hole
Size / Dimension:	1.060" L x 1.050" W (26.92mm x 26.67mm)
Height - Seated (Max):	0.575" (14.60mm)
Footprint:	1.060" L x 1.050" W (26.92mm x 26.67mm)
Style:	-
