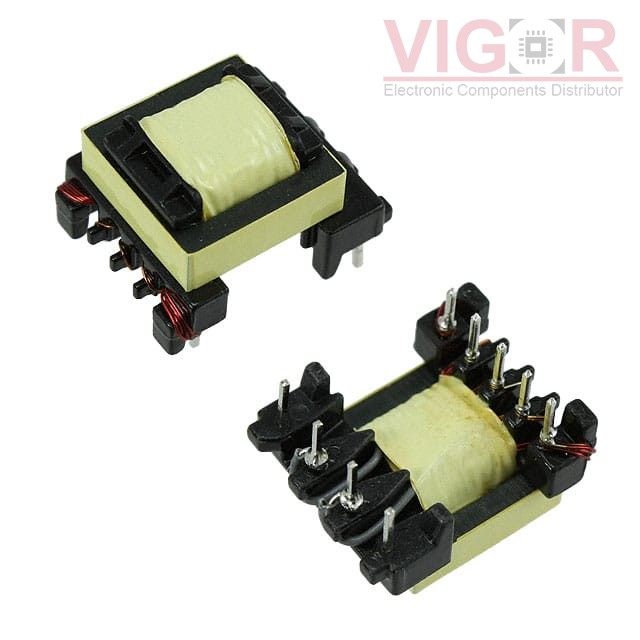

750811019

Part No :: 750811019

Manufacturer: Würth Elektronik Midcom

Description: TRANS OFF LINE POWER PI LNK564

Catalog: Switching Converter, SMPS Transformers

DataSheet: 750811019 PDF

Availability: 0 pieces

Unit Price: ~~$8.48700~~

Current price of 750811019 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

750811019 Specifications

Type	Description
Series:	WE-UNIT, MID-OLTI
Package:	Tray
Part Status:	Active
Type:	For AC/DC Converters
Applications:	Flyback Converters
Intended Chipset:	LNK564
Chipset Manufacturer:	Power Integrations
Voltage - Primary:	120 ~ 375V
Voltage - Auxiliary:	-
Voltage - Isolation:	4000Vrms
Inductance @ Frequency:	2.7mH @ 10kHz
Frequency:	132kHz
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Through Hole
Size / Dimension:	-
Height - Seated (Max):	0.635" (16.13mm)
Footprint:	0.800" L x 0.960" W (20.32mm x 24.38mm)
Style:	-
