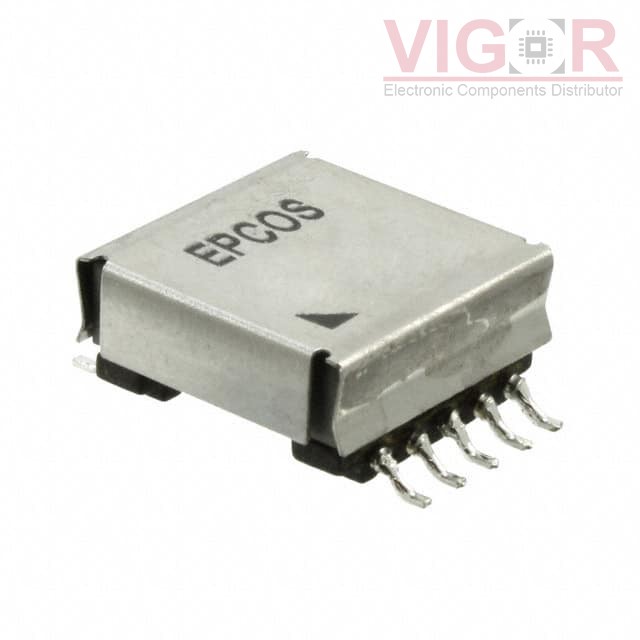

B82802A0012A215

Part No :: B82802A0012A215

Manufacturer: TDK EPCOS

Description: TRANSFORMER FLYBACK 36-60V SMD

Catalog: Switching Converter, SMPS Transformers

DataSheet: B82802A0012A215 PDF

Availability: 37 pieces

Unit Price: ~~$3.83000~~

Current price of B82802A0012A215 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B82802A0012A215 Specifications

Type	Description
Series:	B82802A
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	For DC/DC Converters
Applications:	Flyback Converters
Intended Chipset:	-
Chipset Manufacturer:	-
Voltage - Primary:	36 ~ 60V
Voltage - Auxiliary:	-
Voltage - Isolation:	1500Vrms
Inductance @ Frequency:	100µH @ 100kHz
Frequency:	100kHz
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Size / Dimension:	0.650" L x 0.681" W (16.50mm x 17.30mm)
Height - Seated (Max):	0.341" (8.65mm)
Footprint:	0.650" L x 0.902" W (16.50mm x 22.90mm)
Style:	-
