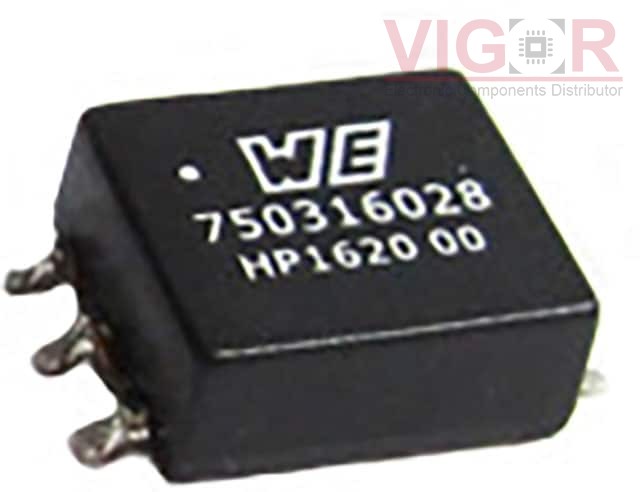

750316028

Part No :: 750316028

Manufacturer: Würth Elektronik Midcom

Description: PUSH-PULL TRANSFORMER WE-PP

Catalog: Switching Converter, SMPS Transformers

DataSheet: 750316028 PDF

Availability: 322 pieces

Unit Price: ~~$3.98000~~

Current price of 750316028 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

750316028 Specifications

Type	Description
Series:	WE-PP, MID-PPTI
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	For DC/DC Converters
Applications:	Forward, Push-Pull Converters
Intended Chipset:	-
Chipset Manufacturer:	Texas Instruments
Voltage - Primary:	3.3V
Voltage - Auxiliary:	-
Voltage - Isolation:	3125Vrms
Inductance @ Frequency:	72µH @ 100kHz
Frequency:	400kHz
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Size / Dimension:	0.327" L x 0.364" W (8.30mm x 9.25mm)
Height - Seated (Max):	0.161" (4.10mm)
Footprint:	-
Style:	-

Please confirm the specifications of the products when ordering.
