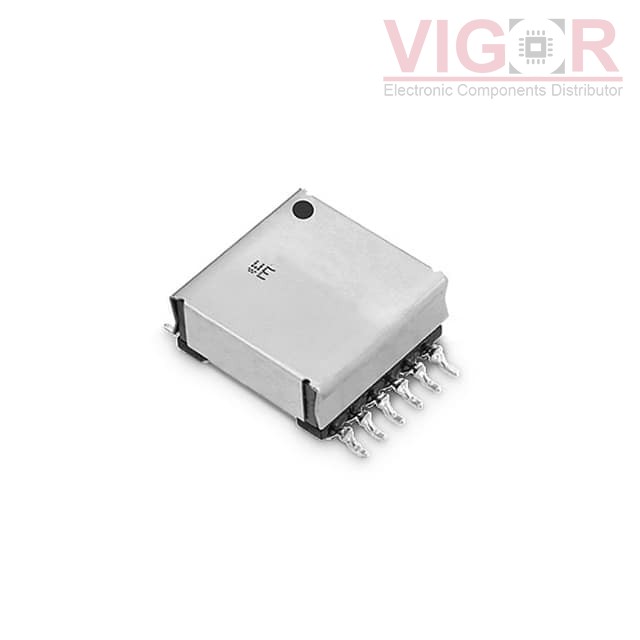

749196518

Part No :: 749196518

Manufacturer: Würth Elektronik Midcom

Description: WE-FLEX FLEXIBLE TRANSFORMER FOR

Catalog: Switching Converter, SMPS Transformers

DataSheet: 749196518 PDF

Availability: 0 pieces

Unit Price: ~~$9.27400~~

Current price of 749196518 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

749196518 Specifications

Type	Description
Series:	WE-FLEX
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	For DC/DC Converters
Applications:	Flexible
Intended Chipset:	-
Chipset Manufacturer:	-
Voltage - Primary:	-
Voltage - Auxiliary:	-
Voltage - Isolation:	1500Vrms
Inductance @ Frequency:	22.3µH @ 100kHz
Frequency:	-
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Size / Dimension:	0.827" L x 0.846" W (21.01mm x 21.49mm)
Height - Seated (Max):	0.472" (11.99mm)
Footprint:	1.161" L x 0.846" W (29.49mm x 21.49mm)
Style:	-
