760871135

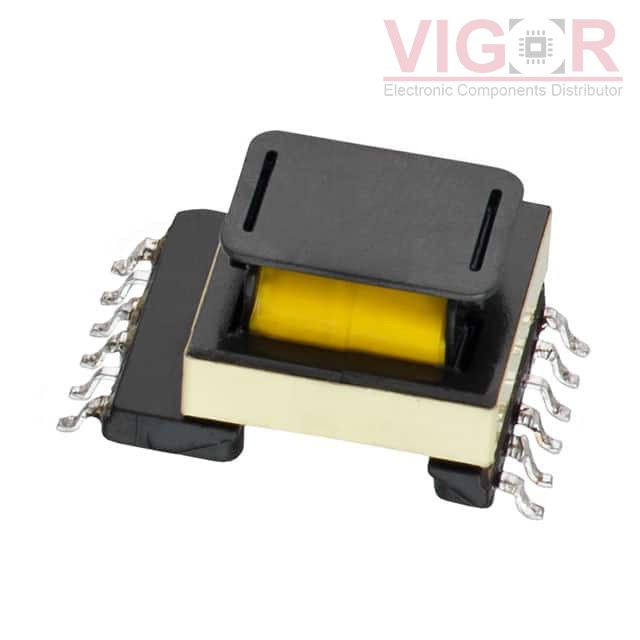

Image is for reference,
please contact us to get the real picture

Part No :: 760871135

Manufacturer: Würth Elektronik Midcom

Description: TRANSFORMER OFFLINE 1.25MH 4000V

Catalog: Switching Converter, SMPS Transformers

DataSheet: 760871135 PDF

Availability: 284 pieces

Unit Price: ~~$9.25000~~

Current price of 760871135 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

760871135 Specifications

Type	Description
Series:	WE-UOST
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	For AC/DC Converters
Applications:	LED Drivers, AC/DC SMPS
Intended Chipset:	-
Chipset Manufacturer:	-
Voltage - Primary:	85 ~ 265V
Voltage - Auxiliary:	14V
Voltage - Isolation:	4000Vrms
Inductance @ Frequency:	1.25mH @ 100kHz
Frequency:	60 ~ 150kHz
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Size / Dimension:	0.654" L x 0.790" W (16.60mm x 20.06mm)
Height - Seated (Max):	0.551" (14.00mm)
Footprint:	0.654" L x 1.016" W (16.60mm x 25.81mm)
Style:	-
