750311592

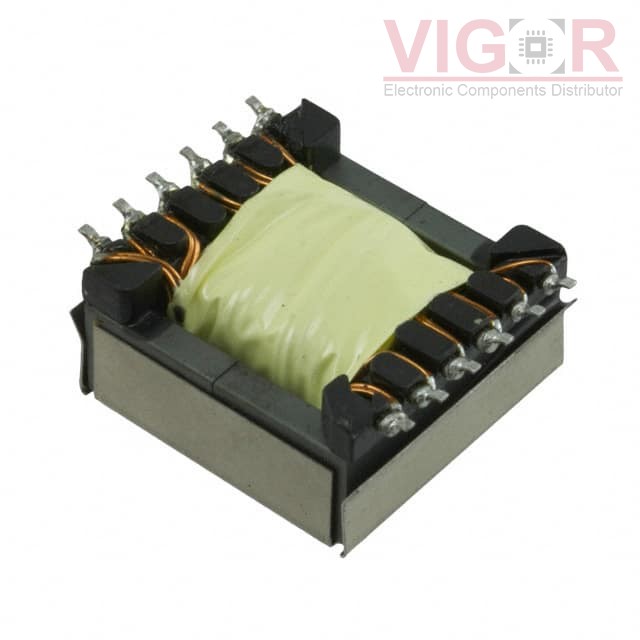

Image is for reference,
please contact us to get the real picture

Part No :: 750311592

Manufacturer: Würth Elektronik Midcom

Description: TRANS FLYBACK LT3748 8UH SMD

Catalog: Switching Converter, SMPS Transformers

DataSheet: 750311592 PDF

Availability: 0 pieces

Unit Price: ~~$13.48000~~

Current price of 750311592 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

750311592 Specifications

Type	Description
Series:	WE-FB
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	For DC/DC Converters
Applications:	Flyback Converters
Intended Chipset:	LT3573, LT3574, LT3575, LT3748
Chipset Manufacturer:	Linear Technology
Voltage - Primary:	20 ~ 48V
Voltage - Auxiliary:	10V
Voltage - Isolation:	1500Vrms
Inductance @ Frequency:	8µH @ 150kHz
Frequency:	150kHz
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Size / Dimension:	-
Height - Seated (Max):	0.544" (13.82mm)
Footprint:	1.064" L x 1.272" W (27.03mm x 32.31mm)
Style:	-
