750811146

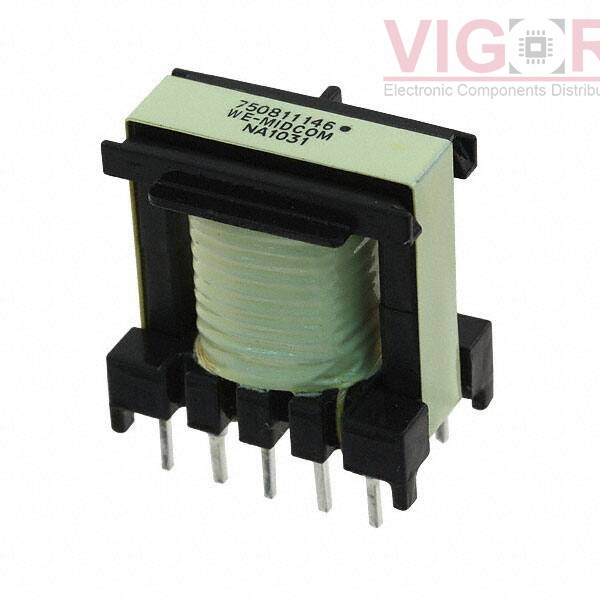

Image is for reference,
please contact us to get the real picture

Part No :: 750811146

Manufacturer: Würth Elektronik Midcom

Description: TRANSFORMER FLYBACK TPS92210

Catalog: Switching Converter, SMPS Transformers

DataSheet: 750811146 PDF

Availability: 0 pieces

Unit Price: ~~$13.20000~~

Current price of 750811146 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

750811146 Specifications

Type	Description
Series:	WE-UNIT, MID-OLTI
Package:	Tray
Part Status:	Active
Type:	For AC/DC Converters
Applications:	Flyback Converters
Intended Chipset:	PMP6001, TPS92210
Chipset Manufacturer:	Texas Instruments
Voltage - Primary:	88 ~ 269V
Voltage - Auxiliary:	-
Voltage - Isolation:	3750Vrms
Inductance @ Frequency:	430µH @ 65kHz
Frequency:	130kHz
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Through Hole
Size / Dimension:	0.876" L x 0.567" W (22.88mm x 14.40mm)
Height - Seated (Max):	0.878" (22.30mm)
Footprint:	0.876" L x 0.567" W (22.25mm x 14.40mm)
Style:	-
