VGT22EPC-200S6A12

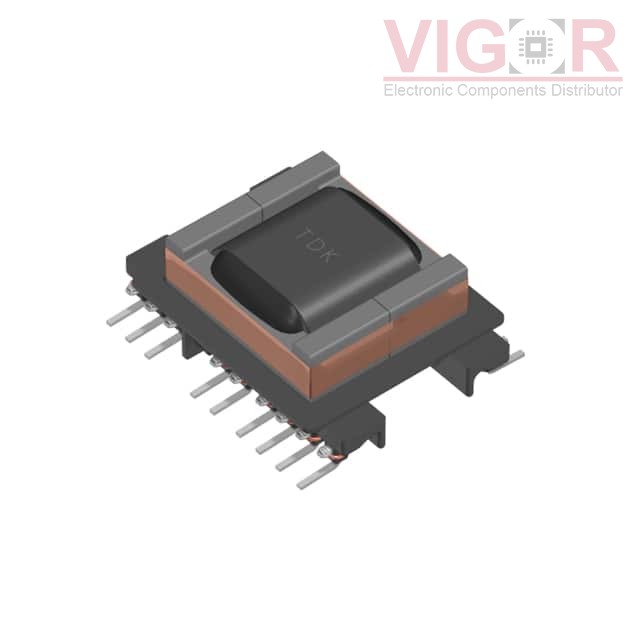

Image is for reference,
please contact us to get the real picture

Part No :: VGT22EPC-200S6A12

Manufacturer: TDK Corporation

Description: TRANSFORMERS FOR IGBT/FET

Catalog: Switching Converter, SMPS Transformers

DataSheet: VGT22EPC-200S6A12 PDF

Availability: 0 pieces

Unit Price: ~~$14.54000~~

Current price of VGT22EPC-200S6A12 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

VGT22EPC-200S6A12 Specifications

Type	Description
Series:	VGT
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	For AC/DC Converters
Applications:	Flyback Converters
Intended Chipset:	-
Chipset Manufacturer:	-
Voltage - Primary:	-
Voltage - Auxiliary:	-
Voltage - Isolation:	2600Vrms
Inductance @ Frequency:	2.5µH @ 100kHz
Frequency:	-
Operating Temperature:	-40°C ~ 130°C
Mounting Type:	Surface Mount
Size / Dimension:	1.299" L x 0.976" W (33.00mm x 24.80mm)
Height - Seated (Max):	0.539" (13.70mm)
Footprint:	1.299" L x 1.055" W (33.00mm x 26.80mm)
Style:	Wirewound
