750311306

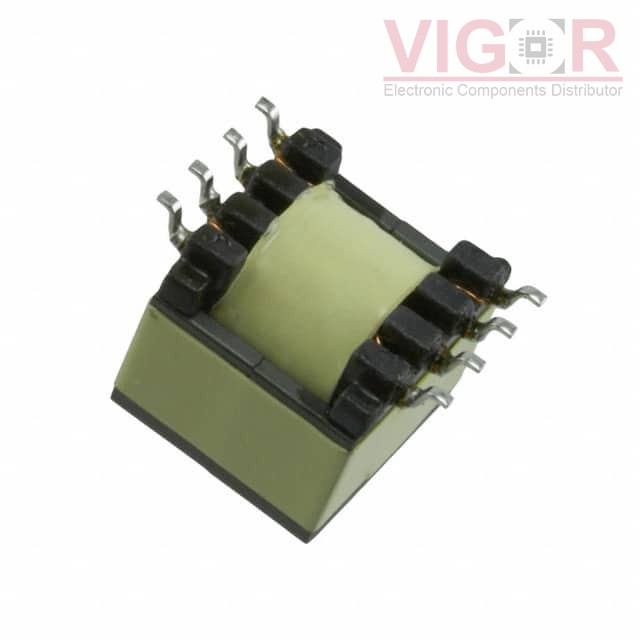

Image is for reference,
please contact us to get the real picture

Part No :: 750311306

Manufacturer: Würth Elektronik Midcom

Description: TRANS FLYBACK LT3575 100UH SMD

Catalog: Switching Converter, SMPS Transformers

DataSheet: 750311306 PDF

Availability: 0 pieces

Unit Price: ~~$8.06404~~

Current price of 750311306 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

750311306 Specifications

Type	Description
Series:	WE-FB
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	For DC/DC Converters
Applications:	Flyback Converters
Intended Chipset:	LT3573, LT3574, LT3575, LT3748
Chipset Manufacturer:	Linear Technology
Voltage - Primary:	9 ~ 30V
Voltage - Auxiliary:	8V @ 20mA
Voltage - Isolation:	1500Vrms
Inductance @ Frequency:	100µH @ 10kHz
Frequency:	100kHz
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Size / Dimension:	-
Height - Seated (Max):	0.455" (11.56mm)
Footprint:	0.525" L x 0.600" W (13.34mm x 15.24mm)
Style:	-
