7508116314

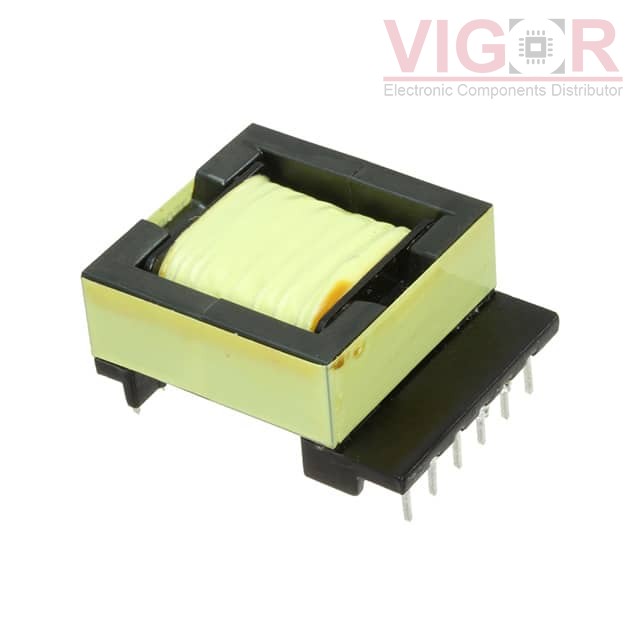

Image is for reference,
please contact us to get the real picture

Part No :: 7508116314

Manufacturer: Würth Elektronik Midcom

Description: OFFLINE TRANSFORMER WE-UNIT

Catalog: Switching Converter, SMPS Transformers

DataSheet: 7508116314 PDF

Availability: 36 pieces

Unit Price: ~~$9.17000~~

Current price of 7508116314 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

7508116314 Specifications

Type	Description
Series:	MID-OLEFD
Package:	Tray
Part Status:	Active
Type:	For DC/DC Converters
Applications:	Flyback Converters
Intended Chipset:	-
Chipset Manufacturer:	-
Voltage - Primary:	120 ~ 375V
Voltage - Auxiliary:	20V
Voltage - Isolation:	4500Vrms
Inductance @ Frequency:	450µH @ 10kHz
Frequency:	68 ~ 100kHz
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Through Hole
Size / Dimension:	-
Height - Seated (Max):	0.551" (14.00mm)
Footprint:	-
Style:	-
