750314441

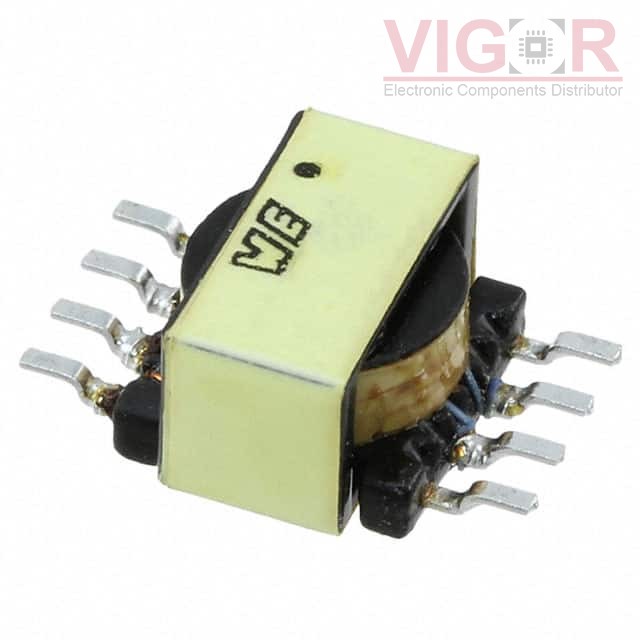

Image is for reference,
please contact us to get the real picture

Part No :: 750314441

Manufacturer: Würth Elektronik Midcom

Description: TRANSFORMER FLYBACK WE-FB SMD

Catalog: Switching Converter, SMPS Transformers

DataSheet: 750314441 PDF

Availability: 0 pieces

Unit Price: ~~$3.11400~~

Current price of 750314441 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

750314441 Specifications

Type	Description
Series:	WE-FB, MID-IBTI
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	For DC/DC Converters
Applications:	Isolated Buck Converters
Intended Chipset:	-
Chipset Manufacturer:	Texas Instruments
Voltage - Primary:	17 ~ 36V
Voltage - Auxiliary:	-
Voltage - Isolation:	1500Vrms
Inductance @ Frequency:	80µH @ 100kHz
Frequency:	-
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Size / Dimension:	0.394" L x 0.435" W (10.00mm x 11.05mm)
Height - Seated (Max):	0.162" (4.11mm)
Footprint:	0.394" L x 0.559" W (10.00mm x 14.21mm)
Style:	-

Please confirm the specifications of the products when ordering.
