PH0814CNLT

Part No :: PH0814CNLT

Manufacturer: PulseLarsen Antenna

VIGOR # :: 1989563

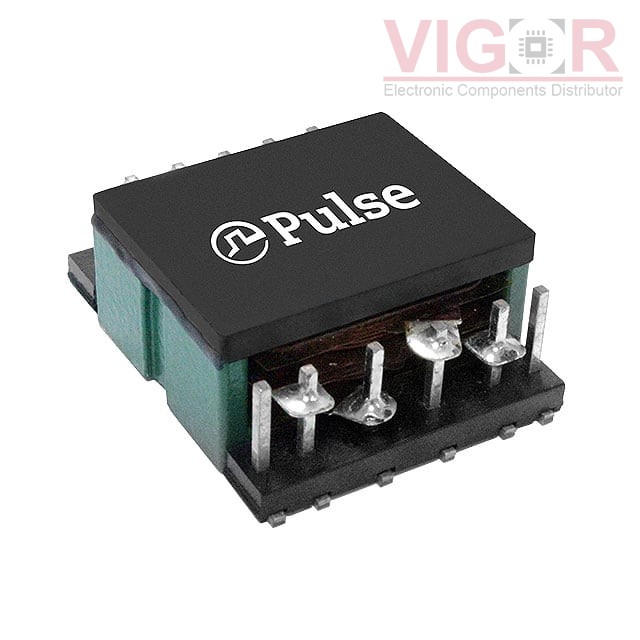

Description: XFMR, ER19 PLANAR, 5:6:2:1, SMT

Catalog: Switching Converter, SMPS Transformers

DataSheet: PH0814CNLT PDF

Country of origin: -

Date code: -

PH0814CNLT Specifications

Type	Description
Series:	PH08XXCNL
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	For DC/DC Converters
Applications:	-
Intended Chipset:	-
Chipset Manufacturer:	-
Voltage - Primary:	-
Voltage - Auxiliary:	-
Voltage - Isolation:	1500Vrms
Inductance @ Frequency:	-
Frequency:	200 ~ 700kHz
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Size / Dimension:	0.850" L x 0.970" W (21.59mm x 24.64mm)
Height - Seated (Max):	0.378" (9.60mm)
Footprint:	-
Style:	Planar
