750317235

Part No :: 750317235

Manufacturer: Würth Elektronik Midcom

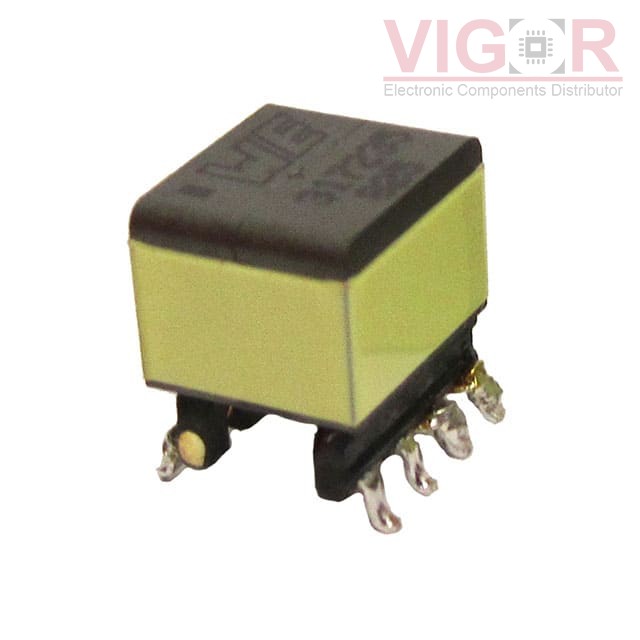

Description: FLYBACK TRANSFORMER EP7 SMT; UI

Catalog: Switching Converter, SMPS Transformers

DataSheet: 750317235 PDF

Availability: 274 pieces

Unit Price: ~~$2.43000~~

Current price of 750317235 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

750317235 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	For DC/DC Converters
Applications:	Flyback Converters
Intended Chipset:	-
Chipset Manufacturer:	Maxim Integrated
Voltage - Primary:	8 ~ 28VDC
Voltage - Auxiliary:	-
Voltage - Isolation:	1500Vrms
Inductance @ Frequency:	16µH @ 100kHz
Frequency:	143.5kHz
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Size / Dimension:	0.385" L x 0.374" W (9.78mm x 9.50mm)
Height - Seated (Max):	0.415" (10.54mm)
Footprint:	0.324" L x 0.360" W (8.23mm x 9.14mm)
Style:	Wirewound
