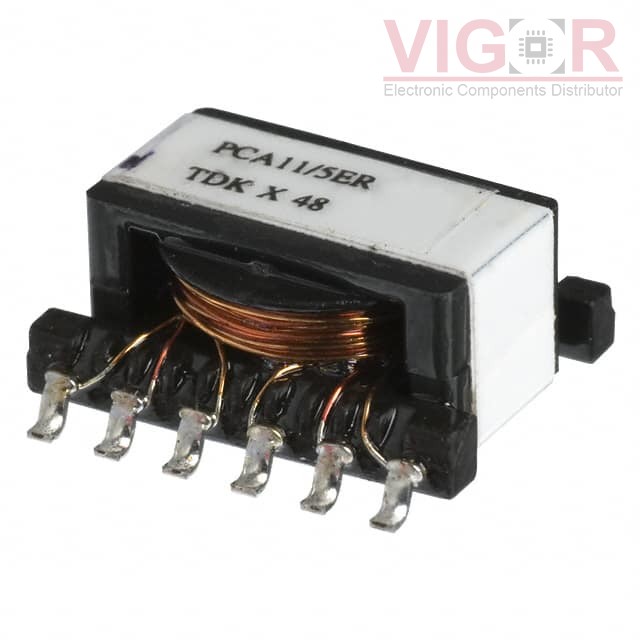

PCA11/5ER-U09S002

Part No :: PCA11/5ER-U09S002

Manufacturer: TDK Corporation

VIGOR # :: 4507783

Description: INDUCTOR/XFRMR 8.5UH MULTIWIND

Catalog: Switching Converter, SMPS Transformers

DataSheet: PCA11/5ER-U09S002 PDF

Country of origin: -

Date code: -

PCA11/5ER-U09S002 Specifications

Type	Description
Series:	PCA11/5ER
Package:	Tray
Part Status:	Obsolete
Type:	Configurable (For DC/DC)
Applications:	Capacitor Charger
Intended Chipset:	-
Chipset Manufacturer:	-
Voltage - Primary:	-
Voltage - Auxiliary:	-
Voltage - Isolation:	500Vrms
Inductance @ Frequency:	Parallel 8.5µH @ 10kHz, Series 306µH @ 10kHz
Frequency:	-
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Size / Dimension:	0.535" L x 0.362" W (13.60mm x 9.20mm)
Height - Seated (Max):	0.256" (6.50mm)
Footprint:	0.535" L x 0.512" W (13.60mm x 13.00mm)
Style:	-
