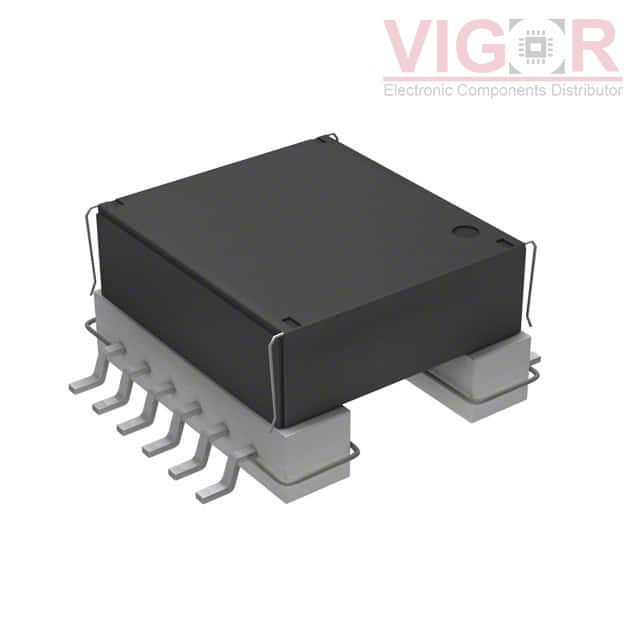

PCA15EFD-U09S003

Part No :: PCA15EFD-U09S003

Manufacturer: TDK Corporation

VIGOR # :: 4507791

Description: INDUCTOR/XFRMR 7.9UH MULTIWIND

Catalog: Switching Converter, SMPS Transformers

DataSheet: PCA15EFD-U09S003 PDF

Country of origin: -

Date code: -

PCA15EFD-U09S003 Specifications

Type	Description
Series:	PCA15EFD
Package:	Tray
Part Status:	Obsolete
Type:	Configurable (For DC/DC)
Applications:	Capacitor Charger
Intended Chipset:	-
Chipset Manufacturer:	-
Voltage - Primary:	-
Voltage - Auxiliary:	-
Voltage - Isolation:	500Vrms
Inductance @ Frequency:	Parallel 7.9µH @ 10kHz, Series 286µH @ 10kHz
Frequency:	-
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Size / Dimension:	0.713" L x 0.630" W (18.10mm x 16.00mm)
Height - Seated (Max):	0.354" (9.00mm)
Footprint:	0.713" L x 0.886" W (18.10mm x 22.50mm)
Style:	-
