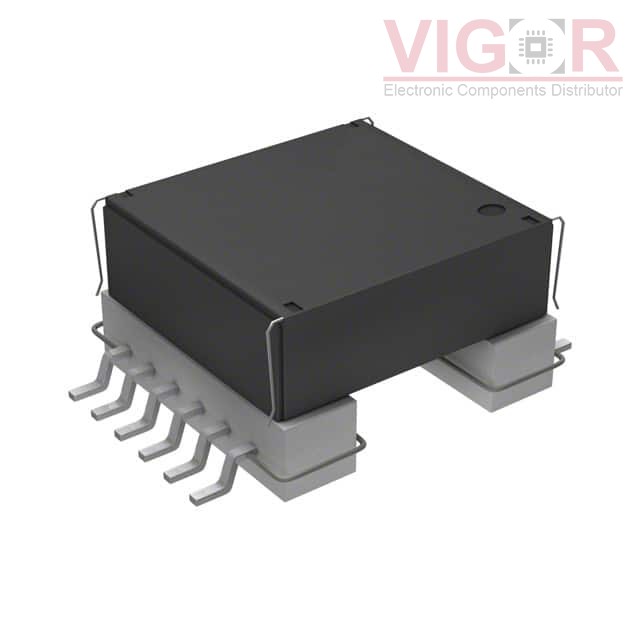

PCA20EFD-U05S003

Part No :: PCA20EFD-U05S003

Manufacturer: TDK Corporation

VIGOR # :: 4507804

Description: INDUCTOR/XFRMR 12.0UH MULTIWIND

Catalog: Switching Converter, SMPS Transformers

DataSheet: PCA20EFD-U05S003 PDF

Country of origin: -

Date code: -

PCA20EFD-U05S003 Specifications

Type	Description
Series:	PCA20EFD
Package:	Tray
Part Status:	Obsolete
Type:	Configurable (For DC/DC)
Applications:	Capacitor Charger
Intended Chipset:	-
Chipset Manufacturer:	-
Voltage - Primary:	-
Voltage - Auxiliary:	-
Voltage - Isolation:	500Vrms
Inductance @ Frequency:	Parallel 12µH @ 10kHz, Series 430µH @ 10kHz
Frequency:	-
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Size / Dimension:	0.866" L x 0.850" W (22.00mm x 21.60mm)
Height - Seated (Max):	0.472" (12.00mm)
Footprint:	0.866" L x 1.173" W (22.00mm x 29.80mm)
Style:	-
