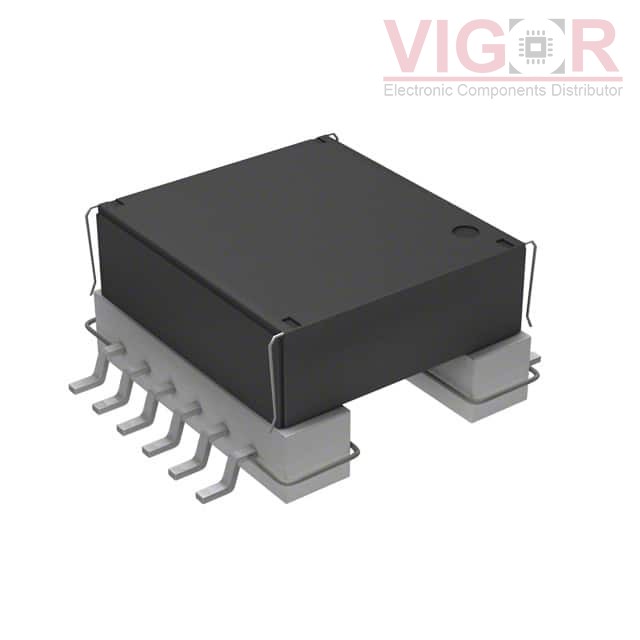

PCA15EFD-U01S003

Part No :: PCA15EFD-U01S003

Manufacturer: TDK Corporation

Description: INDUCTOR/XFRMR 169.0UH MULTIWIND

Catalog: Switching Converter, SMPS Transformers

DataSheet: PCA15EFD-U01S003 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of PCA15EFD-U01S003 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PCA15EFD-U01S003 Specifications

Type	Description
Series:	PCA15EFD
Package:	Tray
Part Status:	Obsolete
Type:	Configurable (For DC/DC)
Applications:	Capacitor Charger
Intended Chipset:	-
Chipset Manufacturer:	-
Voltage - Primary:	-
Voltage - Auxiliary:	-
Voltage - Isolation:	500Vrms
Inductance @ Frequency:	Parallel 169µH @ 10kHz, Series 6.1mH @ 10kHz
Frequency:	-
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Size / Dimension:	0.713" L x 0.630" W (18.10mm x 16.00mm)
Height - Seated (Max):	0.354" (9.00mm)
Footprint:	0.713" L x 0.886" W (18.10mm x 22.50mm)
Style:	-
