1D8E_0524S3U vs PDSE1-S5-S24-D

This detailed comparison of 1D8E_0524S3U and PDSE1-S5-S24-D in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

1D8E_0524S3U

TE Connectivity AMP Connectors

Request For Quote

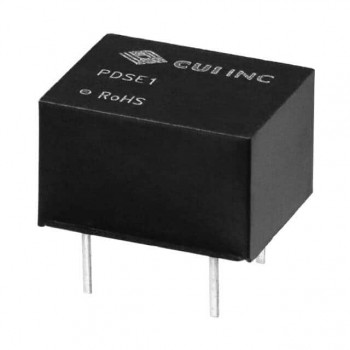

PDSE1-S5-S24-D

CUI Inc.

Request For Quote

Specifications Hide identical items

Manufacturer	TE Connectivity AMP Connectors	CUI Inc.
Package / Case	8-DIP Module, 4 Leads	8-DIP Module, 4 Leads
Description	DC-DC	DC DC CONVERTER 24V 1W
In Stock	815	1 489
Mounting Type	Through Hole	Through Hole
Part Status	Active	Active
Series	1D8E_3U (1W)	PDSE1-D (1W)
Package	Tube	Tube
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	4.5V	4.5V
Voltage - Input (Max)	5.5V	5.5V
Voltage - Output 1	24V	24V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	50mA	42mA
Power (Watts)	1.2 W	1 W
Voltage - Isolation	3 kV	3 kV
Applications	ITE (Commercial)	ITE (Commercial)
Features	-	-
Operating Temperature	-40°C ~ 85°C	-40°C ~ 105°C (With Derating)
Efficiency	83%	85%
Size / Dimension	0.50" L x 0.40" W x 0.27" H (12.7mm x 10.2mm x 6.9mm)	0.50" L x 0.40" W x 0.32" H (12.7mm x 10.2mm x 8.2mm)
Supplier Device Package	-	-
Control Features	-	-
Approval Agency	CE	CB Scheme, EN, IEC, UL
Standard Number	60950-1	55024; 55032 Class A; 62368-1
