78SR112VC vs 78SR110VC

This detailed comparison of 78SR112VC and 78SR110VC in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

78SR112VC

Texas Instruments

Request For Quote

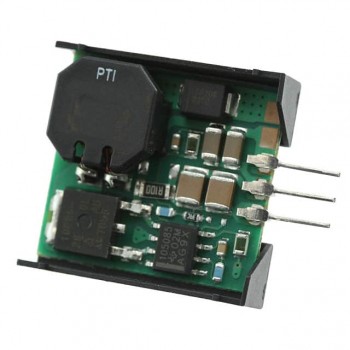

78SR110VC

Texas Instruments

Request For Quote

Specifications Hide identical items

Manufacturer	Texas Instruments	Texas Instruments
Package / Case	3-SIP Module	3-SIP Module
Description	DC DC CONVERTER 12V	DC DC CONVERTER 10V
In Stock	1 601	272
Mounting Type	Through Hole	Through Hole
Part Status	Obsolete	Obsolete
Series	78SR100	78SR100
Package	Tray	Tray
Type	Non-Isolated PoL Module	Non-Isolated PoL Module
Number of Outputs	1	1
Voltage - Input (Min)	14.5V	14.5V
Voltage - Input (Max)	30V	30V
Voltage - Output 1	12V	10V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	1.5A	1.5A
Power (Watts)	-	-
Voltage - Isolation	-	-
Applications	ITE (Commercial)	ITE (Commercial)
Features	OTP, SCP	OTP, SCP
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C
Efficiency	90%	-
Size / Dimension	0.90" L x 0.31" W x 0.94" H (22.9mm x 7.9mm x 23.9mm)	0.90" L x 0.31" W x 0.94" H (22.9mm x 7.9mm x 23.9mm)
Supplier Device Package	-	-
Control Features	-	-
Approval Agency	-	-
Standard Number	-	-
