78SR153VC vs 78SR106VC

This detailed comparison of 78SR153VC and 78SR106VC in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

78SR153VC

Texas Instruments

Request For Quote

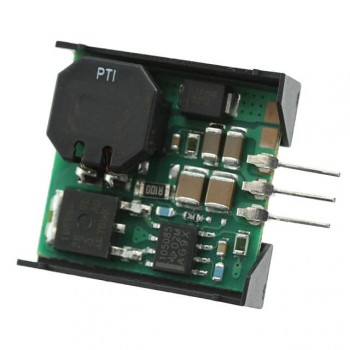

78SR106VC

Texas Instruments

Request For Quote

Specifications Hide identical items

Manufacturer	Texas Instruments	Texas Instruments
Package / Case	3-SIP Module	3-SIP Module
Description	DC DC CONVERTER 5.25V	DC DC CONVERTER 6V
In Stock	657	693
Mounting Type	Through Hole	Through Hole
Part Status	Obsolete	Obsolete
Series	78SR100	78SR100
Package	Tray	Tray
Type	Non-Isolated PoL Module	Non-Isolated PoL Module
Number of Outputs	1	1
Voltage - Input (Min)	14.5V	14.5V
Voltage - Input (Max)	30V	30V
Voltage - Output 1	5.25V	6V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	1.5A	1.5A
Power (Watts)	-	-
Voltage - Isolation	-	-
Applications	ITE (Commercial)	ITE (Commercial)
Features	OTP, SCP	OTP, SCP
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C
Efficiency	-	-
Size / Dimension	0.90" L x 0.31" W x 0.94" H (22.9mm x 7.9mm x 23.9mm)	0.90" L x 0.31" W x 0.94" H (22.9mm x 7.9mm x 23.9mm)
Supplier Device Package	-	-
Control Features	-	-
Approval Agency	-	-
Standard Number	-	-
