78ST105HC vs 78SR105HC

This detailed comparison of 78ST105HC and 78SR105HC in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

78ST105HC

Texas Instruments

Request For Quote

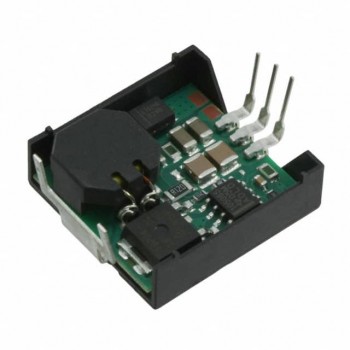

78SR105HC

Texas Instruments

Request For Quote

Specifications Hide identical items

Manufacturer	Texas Instruments	Texas Instruments
Package / Case	3-SIP Module	3-SIP Module
Description	DC DC CONVERTER 5V	DC DC CONVERTER 5V
In Stock	1 530	1 814
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Part Status	Obsolete	Obsolete
Series	78ST100	78SR100
Package	Tray	Tray
Type	Non-Isolated PoL Module	Non-Isolated PoL Module
Number of Outputs	1	1
Voltage - Input (Min)	7V	7V
Voltage - Input (Max)	30V	30V
Voltage - Output 1	5V	5V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	1.5A	1.5A
Power (Watts)	-	-
Voltage - Isolation	-	-
Applications	ITE (Commercial)	ITE (Commercial)
Features	OTP, SCP	OTP, SCP
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C
Efficiency	85%	85%
Size / Dimension	0.94" L x 0.90" W x 0.31" H (23.9mm x 22.9mm x 7.9mm)	0.94" L x 0.90" W x 0.31" H (23.9mm x 22.9mm x 7.9mm)
Supplier Device Package	-	-
Control Features	-	-
Approval Agency	-	-
Standard Number	-	-
