AM2D-4803SH60Z vs 2S7BE_4803S3U

This detailed comparison of AM2D-4803SH60Z and 2S7BE_4803S3U in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

AM2D-4803SH60Z

DComponents

Request For Quote

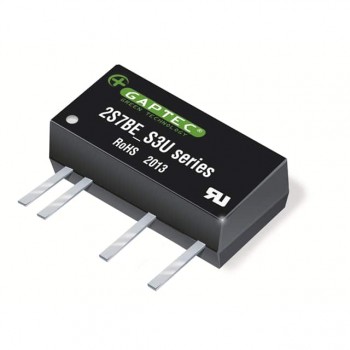

2S7BE_4803S3U

TE Connectivity AMP Connectors

Request For Quote

Specifications Hide identical items

Manufacturer	DComponents	TE Connectivity AMP Connectors
Package / Case	7-SIP Module, 4 Leads	7-SIP Module, 4 Leads
Description	DC DC CONVERTER 3.3V 2W	DC-DC
In Stock	1 399	1 244
Mounting Type	Through Hole	Through Hole
Part Status	Active	Active
Series	AM2D-Z (2W)	2S7BE_3U (2W)
Package	Tube	Tube
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	43.2V	43.2V
Voltage - Input (Max)	52.8V	52.8V
Voltage - Output 1	3.3V	3.3V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	400mA	400mA
Power (Watts)	2 W	1.32 W
Voltage - Isolation	6 kV	3 kV
Applications	ITE (Commercial)	ITE (Commercial)
Features	-	-
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C
Efficiency	60%	60%
Size / Dimension	0.76" L x 0.28" W x 0.39" H (19.5mm x 7.2mm x 10.0mm)	0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
Supplier Device Package	-	-
Control Features	-	-
Approval Agency	CE	CE, cURus
Standard Number	-	60950-1
