AM3O-0515SNZ-L vs SUCS30515BP

This detailed comparison of AM3O-0515SNZ-L and SUCS30515BP in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

AM3O-0515SNZ-L

DComponents

Request For Quote

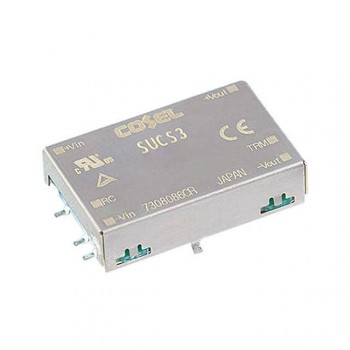

SUCS30515BP

Cosel

Request For Quote

Specifications Hide identical items

Manufacturer	DComponents	Cosel
Package / Case	6-SMD Module	6-SMD Module
Description	DC/DC CONVERTER OPEN FRAME, 3 W,	DC DC CONVERTER 15V 3W
In Stock	1 583	151
Mounting Type	Surface Mount	Surface Mount
Part Status	Active	Active
Series	AM3O-NZ	SUCS (3W)
Package	Box	Box
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	4.5V	4.5V
Voltage - Input (Max)	9V	9V
Voltage - Output 1	15V	15V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	200mA	200mA
Power (Watts)	3 W	3 W
Voltage - Isolation	1.5 kV	500 V
Applications	ITE (Commercial)	ITE (Commercial)
Features	Adjustable Output	-
Operating Temperature	-40°C ~ 85°C (With Derating)	-40°C ~ 85°C (With Derating)
Efficiency	77%	77%
Size / Dimension	1.03" L x 0.59" W x 0.24" H (26.2mm x 15.1mm x 6.2mm)	0.98" L x 0.61" W x 0.28" H (25.0mm x 15.5mm x 7.0mm)
Supplier Device Package	-	-
Control Features	-	-
Approval Agency	-	-
Standard Number	-	-
