B2415S-2WR3 vs F2415S-2WR3

This detailed comparison of B2415S-2WR3 and F2415S-2WR3 in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

B2415S-2WR3

Mornsun

Request For Quote

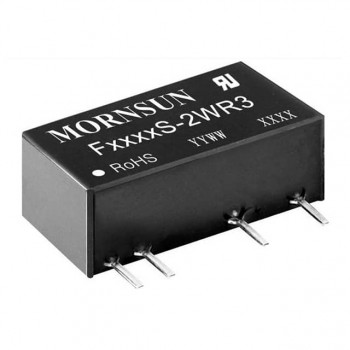

F2415S-2WR3

Mornsun

Request For Quote

Specifications Hide identical items

Manufacturer	Mornsun	Mornsun
Package / Case	7-SIP Module, 4 Leads	7-SIP Module, 4 Leads
Description	DC DC CONVERTER 15V 1W	DC DC CONVERTER 15V 1W
In Stock	1 870	628
Mounting Type	Through Hole	Through Hole
Part Status	Active	Active
Series	*	*
Package	Tube	Tube
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	21.6V	21.6V
Voltage - Input (Max)	26.4V	26.4V
Voltage - Output 1	15V	15V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	133mA	133mA
Power (Watts)	1.99 W	1.99 W
Voltage - Isolation	1.5 kV	3 kV
Applications	ITE (Commercial)	ITE (Commercial)
Features	-	-
Operating Temperature	-40°C ~ 105°C (With Derating)	-40°C ~ 105°C (With Derating)
Efficiency	-	-
Size / Dimension	0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm)	0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm)
Supplier Device Package	-	-
Control Features	-	-
Approval Agency	CB, CE, cURus, UL	CB, CE, cURus, UL
Standard Number	62368-1	62368-1
