DBS150A12 vs DBS150A15

This detailed comparison of DBS150A12 and DBS150A15 in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

DBS150A12

Cosel

Request For Quote

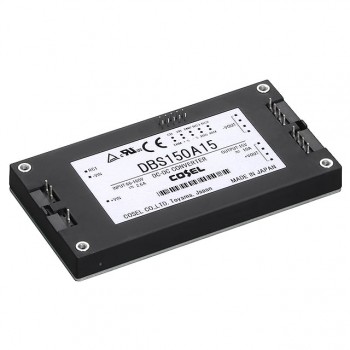

DBS150A15

Cosel

Request For Quote

Specifications Hide identical items

Manufacturer	Cosel	Cosel
Package / Case	21-DIP Module	21-DIP Module
Description	DC DC CONVERTER 12V	DC DC CONVERTER 15V 150W
In Stock	87	99
Mounting Type	Through Hole	Through Hole
Part Status	Active	Active
Series	DBS (150W)	DBS (150W)
Package	-	Box
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	66V	66V
Voltage - Input (Max)	160V	160V
Voltage - Output 1	12V	15V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	12.5A	10A
Power (Watts)	-	150 W
Voltage - Isolation	3 kV	-
Applications	ITE (Commercial)	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP	-
Operating Temperature	-20°C ~ 85°C	-20°C ~ 85°C (With Derating)
Efficiency	87%	86%
Size / Dimension	4.60" L x 2.40" W x 0.50" H (116.8mm x 61.0mm x 12.7mm)	4.60" L x 2.40" W x 0.50" H (116.8mm x 61.0mm x 12.7mm)
Supplier Device Package	-	-
Control Features	-	-
Approval Agency	-	-
Standard Number	-	-
