DC02S0515A vs DC02S0512A

This detailed comparison of DC02S0515A and DC02S0512A in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

DC02S0515A

Delta Electronics / Power

Request For Quote

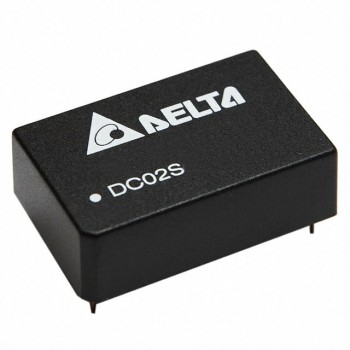

DC02S0512A

Delta Electronics / Power

Request For Quote

Specifications Hide identical items

Manufacturer	Delta Electronics / Power	Delta Electronics / Power
Package / Case	24-DIP Module, 9 Leads	24-DIP Module, 9 Leads
Description	DC DC CONVERTER 15V 2W	DC DC CONVERTER 12V 2W
In Stock	156	587
Mounting Type	Through Hole	Through Hole
Part Status	Active	Active
Series	DC02S/D (2W)	DC02S/D (2W)
Package	Tube	Tube
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	4.5V	4.5V
Voltage - Input (Max)	5.5V	5.5V
Voltage - Output 1	15V	12V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	133mA	165mA
Power (Watts)	2 W	2 W
Voltage - Isolation	6 kV	6 kV
Applications	ITE (Commercial)	ITE (Commercial)
Features	SCP	SCP
Operating Temperature	-25°C ~ 75°C	-25°C ~ 75°C
Efficiency	64%	63%
Size / Dimension	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Supplier Device Package	-	-
Control Features	-	-
Approval Agency	-	-
Standard Number	-	-
