DRQ-12/42-D48NKL1-C vs DRQ-12/42-D48PBL1-C

This detailed comparison of DRQ-12/42-D48NKL1-C and DRQ-12/42-D48PBL1-C in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

DRQ-12/42-D48NKL1-C

Murata Power Solutions

Request For Quote

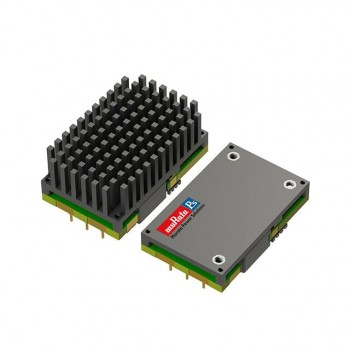

DRQ-12/42-D48PBL1-C

Murata Power Solutions

Request For Quote

Specifications Hide identical items

Manufacturer	Murata Power Solutions	Murata Power Solutions
Package / Case	5-DIP Module, 1/4 Brick	5-DIP Module, 1/4 Brick
Description	DC DC CONVERTER 12V 500W	DC DC CONVERTER 12V 500W
In Stock	981	560
Mounting Type	Through Hole	Through Hole
Part Status	Obsolete	Obsolete
Series	DRQ-12/42-D48 (500W)	DRQ-12/42-D48 (500W)
Package	Tray	Tray
Type	Intermediate Bus Converter	Intermediate Bus Converter
Number of Outputs	1	1
Voltage - Input (Min)	38V	38V
Voltage - Input (Max)	75V	75V
Voltage - Output 1	12V	12V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	42A	42A
Power (Watts)	500 W	500 W
Voltage - Isolation	2.25 kV	2.25 kV
Applications	ITE (Commercial)	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP, SCP, UVLO	Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C
Efficiency	95.5%	95.5%
Size / Dimension	2.30" L x 1.45" W x 0.52" H (58.4mm x 36.8mm x 13.2mm)	2.30" L x 1.45" W x 1.10" H (58.4mm x 36.8mm x 27.9mm)
Supplier Device Package	-	-
Control Features	Enable, Active Low	Enable, Active High
Approval Agency	-	-
Standard Number	-	-
