EC1SC01 vs EC1SC07

This detailed comparison of EC1SC01 and EC1SC07 in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

EC1SC01

Cincon

Request For Quote

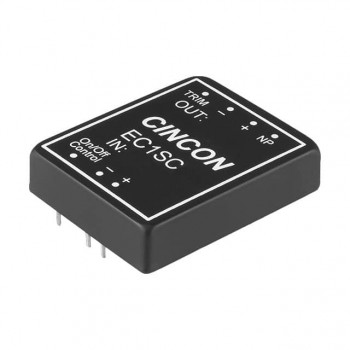

EC1SC07

Cincon

Request For Quote

Specifications Hide identical items

Manufacturer	Cincon	Cincon
Package / Case	8-DIP Module, 7 Leads	8-DIP Module, 7 Leads
Description	DC DC CONVERTER 5V 20W	DC DC CONVERTER 3.3V 13W
In Stock	1 078	718
Mounting Type	Through Hole	Through Hole
Part Status	Active	Active
Series	EC1SC (20W)	EC1SC (20W)
Package	Tube	Tube
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	9V	9V
Voltage - Input (Max)	36V	36V
Voltage - Output 1	5V	3.3V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	4A	4A
Power (Watts)	20 W	13 W
Voltage - Isolation	1.5 kV	1.5 kV
Applications	ITE (Commercial)	ITE (Commercial)
Features	Remote On/Off, OCP, SCP	Remote On/Off, OCP, SCP
Operating Temperature	-25°C ~ 100°C (With Derating)	-25°C ~ 100°C (With Derating)
Efficiency	81%	78%
Size / Dimension	2.00" L x 1.60" W x 0.45" H (50.8mm x 40.6mm x 11.4mm)	2.00" L x 1.60" W x 0.45" H (50.8mm x 40.6mm x 11.4mm)
Supplier Device Package	-	-
Control Features	Enable, Active High	Enable, Active High
Approval Agency	-	-
Standard Number	-	-
