EC3SB-24S15S vs EC3SB-24S12S

This detailed comparison of EC3SB-24S15S and EC3SB-24S12S in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

EC3SB-24S15S

Cincon

Request For Quote

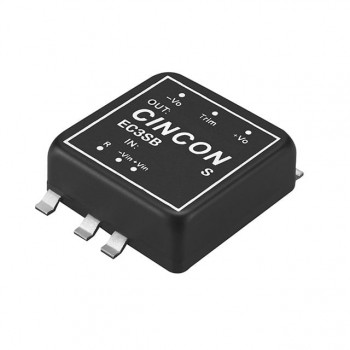

EC3SB-24S12S

Cincon

Request For Quote

Specifications Hide identical items

Manufacturer	Cincon	Cincon
Package / Case	6-SMD Module	6-SMD Module
Description	DC DC CONVERTER 15V 15W	DC DC CONVERTER 12V 15W
In Stock	412	520
Mounting Type	Surface Mount	Surface Mount
Part Status	Active	Active
Series	EC3SB (15W)	EC3SB (15W)
Package	Strip	Strip
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	18V	18V
Voltage - Input (Max)	36V	36V
Voltage - Output 1	15V	12V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	1A	1.25A
Power (Watts)	15 W	15 W
Voltage - Isolation	1.5 kV	1.5 kV
Applications	ITE (Commercial)	ITE (Commercial)
Features	Remote On/Off, OCP, OVP, SCP, UVLO	Remote On/Off, OCP, OVP, SCP, UVLO
Operating Temperature	-40°C ~ 105°C (With Derating)	-40°C ~ 105°C (With Derating)
Efficiency	90%	90%
Size / Dimension	1.00" L x 1.00" W x 0.36" H (25.4mm x 25.4mm x 9.2mm)	1.00" L x 1.00" W x 0.36" H (25.4mm x 25.4mm x 9.2mm)
Supplier Device Package	-	-
Control Features	Enable, Active High	Enable, Active High
Approval Agency	-	-
Standard Number	-	-
