EC4BE23 vs EC4BE22

This detailed comparison of EC4BE23 and EC4BE22 in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

EC4BE23

Cincon

Request For Quote

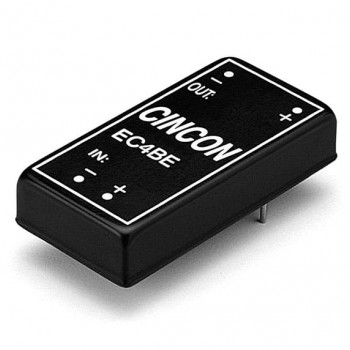

EC4BE22

Cincon

Request For Quote

Specifications Hide identical items

Manufacturer	Cincon	Cincon
Package / Case	5-DIP Module, 4 Leads	5-DIP Module, 4 Leads
Description	DC DC CONVERTER 15V 10W	DC DC CONVERTER 12V 10W
In Stock	513	1 564
Mounting Type	Through Hole	Through Hole
Part Status	Active	Active
Series	EC4BE (10W)	EC4BE (10W)
Package	Tube	Tube
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	36V	36V
Voltage - Input (Max)	72V	72V
Voltage - Output 1	15V	12V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	666mA	830mA
Power (Watts)	10 W	10 W
Voltage - Isolation	500 V	500 V
Applications	ITE (Commercial)	ITE (Commercial)
Features	SCP	SCP
Operating Temperature	-40°C ~ 100°C (With Derating)	-40°C ~ 100°C (With Derating)
Efficiency	82%	82%
Size / Dimension	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Supplier Device Package	-	-
Control Features	-	-
Approval Agency	-	-
Standard Number	-	-
