EC7B-24S33S vs S36SE3R305NDFG

This detailed comparison of EC7B-24S33S and S36SE3R305NDFG in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

EC7B-24S33S

Cincon

Request For Quote

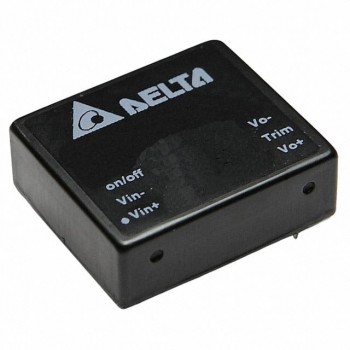

S36SE3R305NDFG

Delta Electronics / Power

Request For Quote

Specifications Hide identical items

Manufacturer	Cincon	Delta Electronics / Power
Package / Case	6-DIP Module	6-DIP Module
Description	DC DC CONVERTER 3.3V 17W	DC DC CONVERTER 3.3V 17W
In Stock	1 232	1 844
Mounting Type	Through Hole	Through Hole
Part Status	Active	Obsolete
Series	EC7B (20W)	S36SE (17W)
Package	Tube	Tube
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	18V	18V
Voltage - Input (Max)	36V	75V
Voltage - Output 1	3.3V	3.3V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	5A	5A
Power (Watts)	17 W	17 W
Voltage - Isolation	1.5 kV	1.5 kV
Applications	ITE (Commercial)	ITE (Commercial)
Features	Remote On/Off, OCP, OVP, SCP, UVLO	Remote On/Off, UVLO
Operating Temperature	-40°C ~ 85°C (With Derating)	-40°C ~ 85°C
Efficiency	90%	86.5%
Size / Dimension	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)	1.10" L x 0.96" W x 0.34" H (27.9mm x 24.4mm x 8.7mm)
Supplier Device Package	-	-
Control Features	Enable, Active High	Enable, Active Low
Approval Agency	-	-
Standard Number	-	-
