ICG12006A007V007R vs ICF12005A007V-007-R

This detailed comparison of ICG12006A007V007R and ICF12005A007V-007-R in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

ICG12006A007V007R

TDK-Lambda, Inc.

Request For Quote

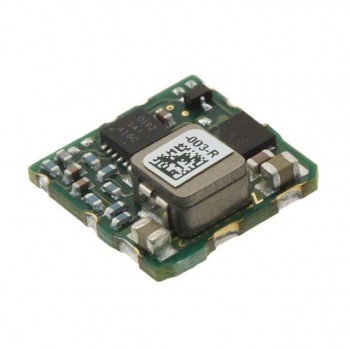

ICF12005A007V-007-R

TDK-Lambda, Inc.

Request For Quote

Specifications Hide identical items

Manufacturer	TDK-Lambda, Inc.	TDK-Lambda, Inc.
Package / Case	10-SMD Module	10-SMD Module
Description	DC DC CONVERTER 0.7-5.5V 33W	DC DC CONVERTER 0.7-5.5V 25W
In Stock	588	855
Mounting Type	Surface Mount	Surface Mount
Part Status	Active	Active
Series	iCG (33W)	iCF (17W)
Package	Bulk	Tape & Reel (TR)
Type	Non-Isolated PoL Module	Non-Isolated PoL Module
Number of Outputs	1	1
Voltage - Input (Min)	4.5V	4.5V
Voltage - Input (Max)	14V	14V
Voltage - Output 1	0.7 ~ 5.5V	0.7 ~ 5.5V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	6A	5A
Power (Watts)	33 W	25 W
Voltage - Isolation	-	-
Applications	ITE (Commercial)	ITE (Commercial)
Features	Remote On/Off, OCP	OTP, SCP
Operating Temperature	-40°C ~ 115°C	-40°C ~ 115°C
Efficiency	94%	93.5%
Size / Dimension	0.48" L x 0.48" W x 0.34" H (12.2mm x 12.2mm x 8.5mm)	0.48" L x 0.48" W x 0.18" H (12.2mm x 12.2mm x 4.5mm)
Supplier Device Package	-	10-SMD Module
Control Features	Enable, Active Low	-
Approval Agency	-	-
Standard Number	-	-
