IPM24S0C0S03FA vs IPM24S0A0S03FA

This detailed comparison of IPM24S0C0S03FA and IPM24S0A0S03FA in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

IPM24S0C0S03FA

Delta Electronics / Power

Request For Quote

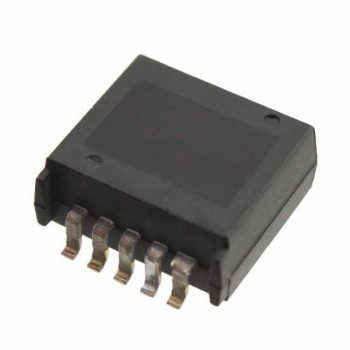

IPM24S0A0S03FA

Delta Electronics / Power

Request For Quote

Specifications Hide identical items

Manufacturer	Delta Electronics / Power	Delta Electronics / Power
Package / Case	7-SMD Module	7-SMD Module
Description	DC DC CONVERTER 8-15V 45W	DC DC CONVERTER 1.2-2.5V 7.5W
In Stock	111	716
Mounting Type	Surface Mount	Surface Mount
Part Status	Obsolete	Obsolete
Series	Delphi IPM24S	Delphi IPM24S
Package	Tape & Reel (TR)Cut Tape (CT)Digi-Reel®	Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
Type	Non-Isolated PoL Module	Non-Isolated PoL Module
Number of Outputs	1	1
Voltage - Input (Min)	20V	8V
Voltage - Input (Max)	36V	36V
Voltage - Output 1	8 ~ 15V	1.2 ~ 2.5V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	3A	3A
Power (Watts)	45 W	7.5 W
Voltage - Isolation	-	-
Applications	ITE (Commercial)	ITE (Commercial)
Features	Remote On/Off, OCP, SCP, UVLO	Remote On/Off, OCP, SCP, UVLO
Operating Temperature	-40°C ~ 125°C	-40°C ~ 125°C
Efficiency	95%	85%
Size / Dimension	0.70" L x 0.59" W x 0.31" H (17.8mm x 15.0mm x 7.8mm)	0.70" L x 0.59" W x 0.31" H (17.8mm x 15.0mm x 7.8mm)
Supplier Device Package	-	-
Control Features	Enable, Active High	Enable, Active High
Approval Agency	-	-
Standard Number	-	-
