JCG1512S12 vs JCG1512S15

This detailed comparison of JCG1512S12 and JCG1512S15 in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

JCG1512S12

XP Power

Request For Quote

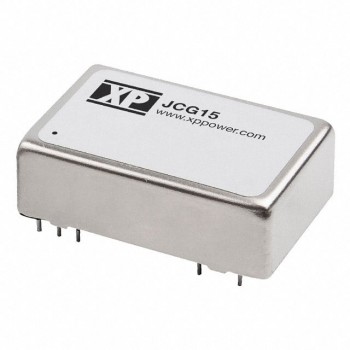

JCG1512S15

XP Power

Request For Quote

Specifications Hide identical items

Manufacturer	XP Power	XP Power
Package / Case	24-DIP Module, 8 Leads	24-DIP Module, 8 Leads
Description	DC DC CONVERTER 12V 15W	DC DC CONVERTER 15V 15W
In Stock	1 263	1 744
Mounting Type	Through Hole	Through Hole
Part Status	Active	Active
Series	JCG (15W)	JCG (15W)
Package	Tube	Tube
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	9V	9V
Voltage - Input (Max)	18V	18V
Voltage - Output 1	12V	15V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	1.25A	1A
Power (Watts)	15 W	15 W
Voltage - Isolation	1.6 kV	1.6 kV
Applications	ITE (Commercial)	ITE (Commercial)
Features	Remote On/Off, OCP, OVP, SCP, UVLO	Remote On/Off, OCP, OVP, SCP, UVLO
Operating Temperature	-40°C ~ 100°C	-40°C ~ 100°C
Efficiency	89%	90%
Size / Dimension	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Supplier Device Package	-	-
Control Features	Enable, Active High	Enable, Active High
Approval Agency	-	-
Standard Number	62368-1	62368-1
